AZ2100-1A-12DE by american zettler
DATA SHEET

AZ2100-1A-12DE

American Zettler

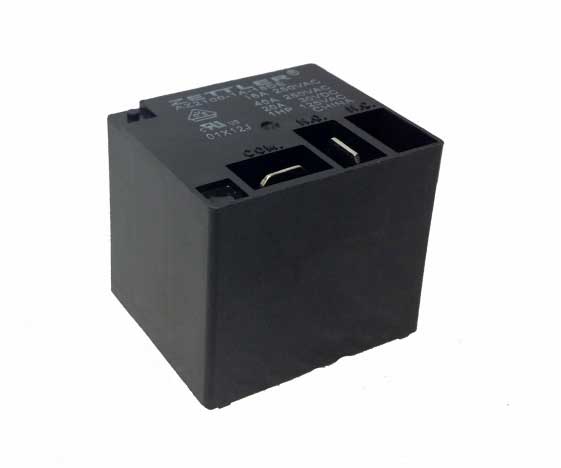

Miniature Power Relay - 1FormA (SPST-NO) - 12VDC Coil - 40A Contacts - -55°C to 85°C .. see full description

RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
American Zettler
Part No:
AZ2100-1A-12DE
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
240
Package Type:
Box
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPST-NO
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-55 to 100 °C
The AMERICAN ZETTLER part AZ2100-1A-12DE is a versatile and high-performance Miniature Power Relay designed to handle various electrical applications. With a 1FormA configuration (SPST-NO), this relay offers a single normally open contact for reliable switching capabilities. The 12VDC coil ensures efficient energy consumption while providing reliable operation. Additionally, the AZ2100-1A-12DE is equipped with 40A contacts, making it suitable for handling heavy loads. Designed to withstand extreme temperatures, this relay can operate flawlessly in environments ranging from -55°C to 85°C. This durability and resilience allow for reliable performance in a wide range of demanding industrial and automotive applications. Overall, the AMERICAN ZETTLER part AZ2100-1A-12DE is a miniature power relay that combines compact size, high-quality construction, and superior performance, making it an ideal choice for various electrical and electronic systems.
Search Keywords:
AZ21001A12DE
IN STOCK: 2,146
Ships today, if you order in
On Order:
3,120   can ship 12/23/24
Minimum Order:
25
Factory Lead-Time
16 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
25
$1.84
$46.000
240
$1.57
$376.800
480
$1.43
$686.400
720
$1.34
$964.800
1,200
$1.28
$1,536.000
2,640
$1.26
$3,326.400
5,040
$1.24
$6,249.600
7,680 +
$1.22
$9,369.600
Suppliers Standard Package
Please Note: Item may be subject to tariff fee if shipping within the United States
Tools/3D Models
Request Free CAD Models
