031-10-RFXG1 by amphenol rf
DATA SHEET

031-10-RFXG1

Amphenol RF

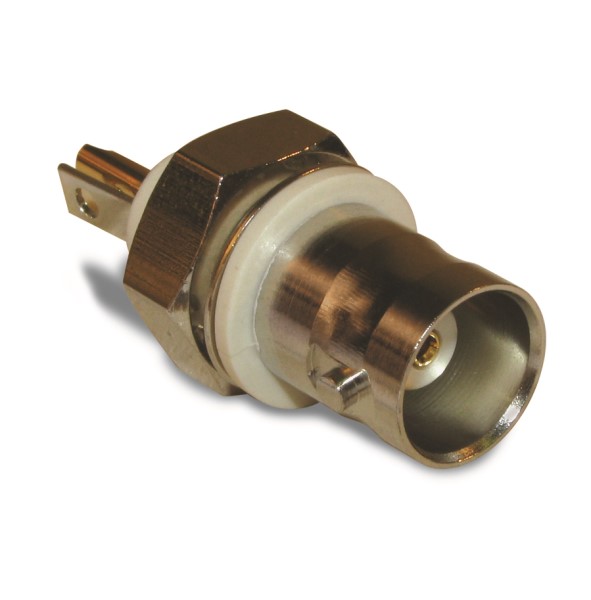

RF Connector - BNC Straight Jack - Isolated - Solder Cup - Bulkhead - 50 Ohm - Maximum Frequency 4 GHz - Brass. .. see full description

RoHS Compliant
Bag Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
031-10-RFXG1
RoHS:
Yes
HTS:
8536694010
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Bag
Type:
BNC
Impedance:
50 Ohm
Operating Frequency:
0 to 4 Hz to GHz
Gender:
Jack
Mounting:
Panel Mount
Body Orientation:
Straight
Terminate To:
Coaxial Cable
Termination Method:
Solder Cup
Operating Temperature:
-65 to 165 °C
Dimension:
30 mm
The 031-10-RFXG1 is an isolated RF Connector, BNC series, BNC straight Jack with gold-plated phosphor bronze contacts and solder contact termination. Body made up of brass with nickel-plated finish and nylon insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables.
Search Keywords:
03110RFXG1
  Possible Replacement options available.  See Alternatives
IN STOCK: 613
Ships today, if you order in
Manufacturer Stock:
1   can ship 11/29/24
Minimum Order:
5
Factory Lead-Time
11 Weeks can ship 1/31/25
Enter Quantity
Quantity
Unit Price
Ext. Price
5
$3.85
$19.250
50
$2.56
$128.000
100
$1.96
$196.000
300
$1.88
$564.000
500
$1.84
$920.000
1,000
$1.82
$1,820.000
2,500
$1.79
$4,475.000
5,000 +
$1.76
$8,800.000
Suppliers Standard Package
Please Note: Item may be subject to tariff fee if shipping within the United States
