031-221-RFX by amphenol rf
DATA SHEET

031-221-RFX

Amphenol RF

RF Connector - BNC Straight Jack - Solder Cup - Bulkhead - 50 Ohm - Maximum Frequency 4 GHz - Zinc Die Cast. .. see full description

RoHS Compliant
Bag Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Amphenol RF
Part No:
031-221-RFX
RoHS:
Yes
HTS:
8536694010
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Bag
Type:
BNC
Impedance:
50 Ohm
Operating Frequency:
0 to 4 Hz to GHz
Gender:
Jack
Mounting:
Panel Mount
Body Orientation:
Straight
Terminate To:
Wire
Termination Method:
Solder Cup
Operating Temperature:
-65 to 165 °C
Dimension:
27 x 12.7 mm

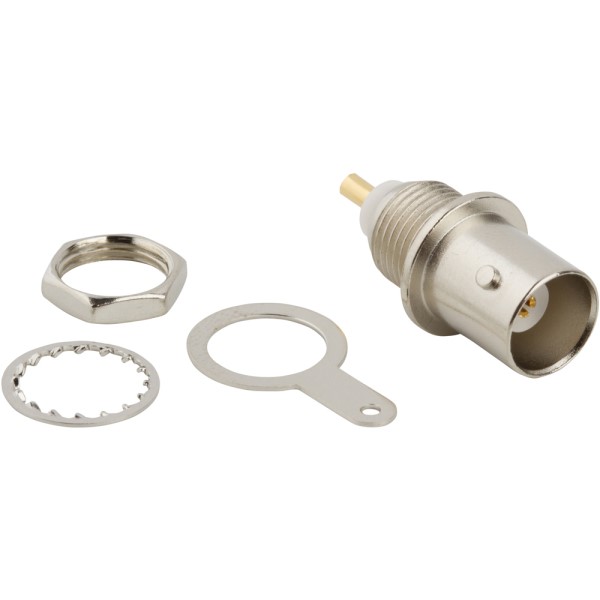

The 031-221-RFX is a BNC straight Bulkhead Jack with gold-plated phosphor bronze contacts, nickel-plated zinc die-cast body and a Delrin insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. Designed to accommodate a large variety of RG and industry standard cables. This 50Ω miniature BNC connector is designed for RG58, RG59, RG179 and RG316 cable.
Search Keywords:
031221RFX
  Possible Replacement options available.  See Alternatives
IN STOCK: 1,932
Can Ship immediately
Manufacturer Stock:
8,865   can ship 12/6/24
Minimum Order:
100
Multiple:
100
Factory Lead-Time
11 Weeks can ship 2/6/25
Enter Quantity
Quantity
Unit Price
Ext. Price
100
$1.64
$164.000
300
$1.61
$483.000
500
$1.57
$785.000
1,000
$1.42
$1,420.000
2,500
$1.36
$3,400.000
5,000
$1.33
$6,650.000
7,500
$1.31
$9,825.000
10,000 +
$1.29
$12,900.000
