help desk software
1327G8-BK by anderson power products
DATA SHEET

1327G8-BK

Anderson Power Products

PP15/45-HSG W/SPG-BLUE .. see full description

  • RoHS Compliant
  • Bulk Packaging
  • Accessories
  • Set Notification
  • Request Programming Quote
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Anderson Power Products
Part No:
1327G8-BK
RoHS:
Yes
HTS:
8538907080
COO:
US
ECCN:
EAR99
Supplier Standard Pack:
2500
Package Type:
Bulk
Mounting:
N/A
Body Orientation:
Straight
Gender:
N/A
Termination Method:
Crimp
Number of Contacts:
1
Maximum Voltage Rating:
600,600 VDC|VAC
Maximum Current Rating:
30 A
Operating Temperature:
-20 to 105 °C

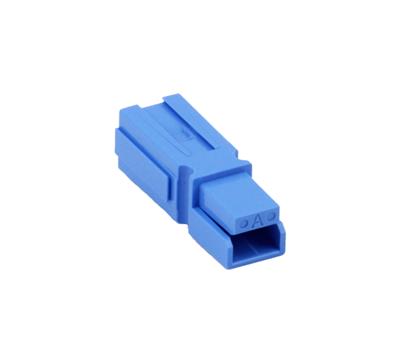

The 1327G8 is a Standard Housing for use with the PP15/45 Powerpole finger proof connectors. The original housing design has an open interface. Will not mate with finger proof housings. Improved on the original APP® design by adding ribs to mating interface to protect against accidental contact with live circuits. Meets the requirements of UL1977 section 10.2. Will not mate with standard housings. They can be used for wire-to-wire or wire-to-board applications. Wire sizes from #20AWG (0.75mm²) to #10AWG (6mm²) offer power capabilities up to 55A per pole. Finger proof housings and the ability to incorporate first-mate last-break ground connectors enhance the capabilities of this Powerpole® series.
Search Keywords:
1327G8BK
IN STOCK: 22,833
Can Ship immediately
Minimum Order:
50
Factory Lead-Time
4 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
50
$0.5974
$29.870
500
$0.3429
$171.450
1,000
$0.3378
$337.800
2,500
$0.3327
$831.750
5,000
$0.3277
$1,638.500
7,500
$0.3228
$2,421.000
10,000
$0.3054
$3,054.000
15,000 +
$0.3008
$4,512.000
