MAP80-4004 by bel power solutions
DATA SHEET

MAP80-4004

Bel Power Solutions

AC/DC Power Supply Quad-OUT 5V/24V/-15V/15V 14A/2A/1A/1A 80W

RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Bel Power Solutions
Part No:
MAP80-4004
RoHS:
Yes
HTS:
8504409520
COO:
SK
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Type:
Switching
Style:
Open Frame
AC Input Voltage:
N/A
Number of Outputs:
4
Output Voltage:
5,24,-15,15 V
Maximum Output Current:
14,2,1,1 A
Maximum Output Power:
80 W
Input Connector Type:
Molex Connector
Dimension:
182.9 x 106.7 x 45.7 mm
Life Cycle:
Discontinued & Replaced
AC/DC Power Supply Quad-OUT 5V/24V/-15V/15V 14A/2A/1A/1A 80W
Search Keywords:
MAP804004
  This product is not in stock and cannot be back-ordered
RECOMMENDED REPLACEMENT

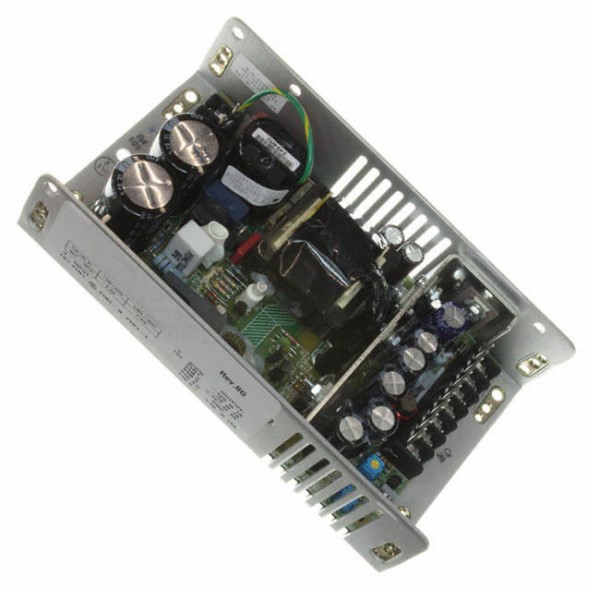

MAP80-4004G
MAP80-4004G
VIEW PRODUCT
