HL254-73 by carling technologies
DATA SHEET

HL254-73

Carling Technologies

3-pole - ON-None-ON - 10A/15A 250VAC/125VAC 3/4 HP - Non-Illuminated Bat Style Toggle - Screw Terminals .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Carling Technologies
Part No:
HL254-73
Alias/AKA:
HHH-41104000
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
Pole Throw Configuration:
3P2T (3PDT)
Switch Configuration:
On None On
Contact Rating @ Voltage:
559.27 A
Actuator Style:
Bat Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw
Dimension:
33.22 x 27.64 x 59.05 mm
Operating Temperature:
0 to 85 °C

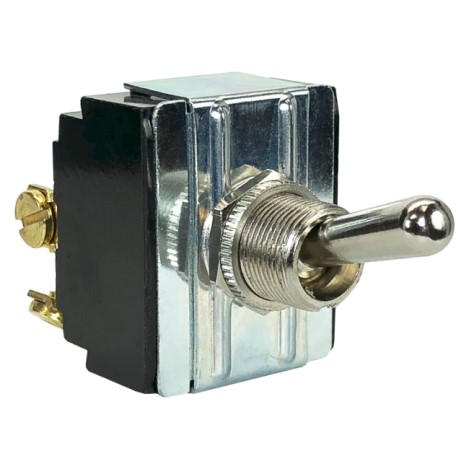

The CARLING TECHNOLOGIES part HL254-73 is a reliable and high-quality toggle switch. It features a 3PDT (Triple Pole Double Throw) configuration, making it ideal for applications requiring multiple input and output connections. Designed for easy operation, this switch has a bat lever for comfortable use.With a robust construction, the HL254-73 can handle a maximum current of 15A and a voltage rating of 250VAC, offering excellent performance and safety. Additionally, it has a power rating of 559.27VA, enabling it to handle heavy-duty electrical loads.This toggle switch is panel-mounted with threads, ensuring secure and stable installation. It is equipped with screw terminals, allowing for quick and secure wire connections during installation. Designed to meet the needs of various industrial and commercial applications, the HL254-73 is a versatile switch that offers reliable performance and long-lasting durability.
Search Keywords:
HL25473
IN STOCK: 687
Can Ship immediately
Factory Lead-Time
12 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$19.67
$19.670
5
$16.41
$82.050
30
$15.76
$472.800
50
$15.39
$769.500
100
$15.08
$1,508.000
250
$13.36
$3,340.000
500 +
$13.22
$6,610.000
Please Note: Item may be subject to tariff fee if shipping within the United States
Older Equivalent
HHH-41104000
HHH-41104000
VIEW PRODUCT
Tools/3D Models
Request Free CAD Models
