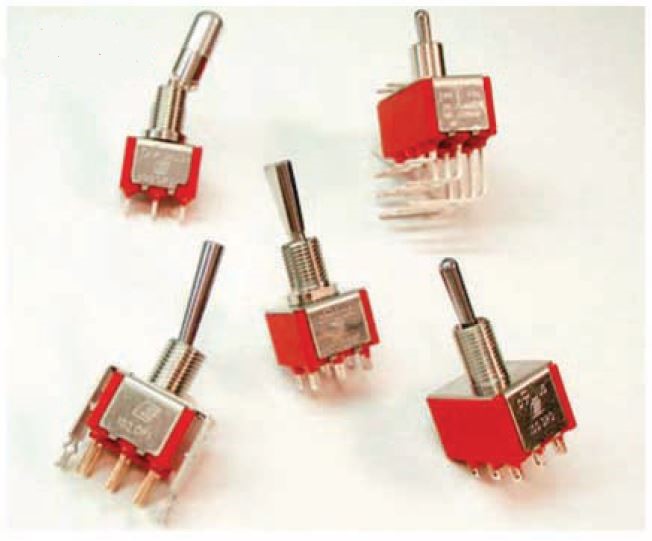

100DP1T2B4VS2RE by e-switch
DATA SHEET

100DP1T2B4VS2RE

E-Switch

Toggle Switch - DPDT - On-None-On - 20V - 0.4VA - Gold Plated Contacts - PC Mount - 1/4" Dia x .280" No Thread Bushing - No Hardware .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
100DP1T2B4VS2RE
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
270
Pole Throw Configuration:
DPDT
Switch Configuration:
On None On
Contact Rating @ Voltage:
0.4@20VAC A
Actuator Style:
Round Lever
Mounting:
PC Mount with Bracket
Thread Size:
N/R
Body Orientation:
Straight
Terminal Type:
PC Pins
Dimension:
16.26mm x 11.43mm x 25.24 mm
Operating Temperature:
-30 to 85 °C
The E-SWITCH part 100DP1T2B4VS2RE is a versatile and reliable toggle switch. It features a DPDT (double pole double throw) configuration with an On-None-On operation, making it suitable for various applications. With a maximum rating of 20V and 0.4VA, this switch can handle a range of electrical loads. The gold plated contacts ensure excellent conductivity and longevity. It is designed for easy installation with PC mount technology and a 1/4" diameter by .280" no thread bushing. Please note that no hardware is included with this switch.
Search Keywords:
100DP1T2B4VS2RE
IN STOCK: 515
Ships today, if you order in
Minimum Order:
5
Factory Lead-Time
12 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
5
$5.057
$25.285
50
$4.037
$201.850
100
$3.804
$380.400
270
$3.493
$943.110
540
$3.298
$1,780.920
1,080
$3.151
$3,403.080
2,700
$3.120
$8,424.000
5,130 +
$3.089
$15,846.570
Suppliers Standard Package
Please Note: Item may be subject to tariff fee if shipping within the United States
Tools/3D Models
Request Free CAD Models
