DATA SHEET

PBH2UOANAGX

E-Switch

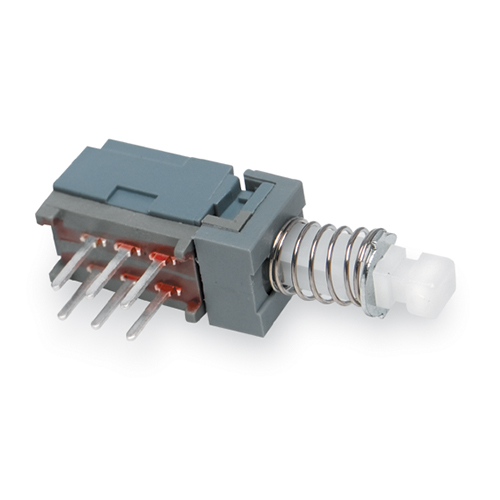

Switch Push Button N.O./N.C. DPDT Square Button 0.1A 30VDC Momentary Contact PC Pins Thru-Hole .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
E-Switch
Part No:
PBH2UOANAGX
RoHS:
Yes
HTS:
8536509033
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
256
Mounting:
Through Hole
Pole Throw Configuration:
DPDT
Bushing Type:
N/R
Switch Configuration:
N.O./N.C.
Contact Rating @ Voltage:
0.1A@30 VDC
Actuator Style:
Square Button
Illumination:
N/R
Terminal Type:
PC Pins
Body Orientation:
Right Angle
Dimension:
7.3 x 25.2 x 9.1 mm
The E-SWITCH PBH2UOANAGX is a versatile push button switch designed for momentary contact operations. This switch features a square button with a dual-pole, double-throw (DPDT) configuration, allowing it to act as both a normally open (N.O.) and normally closed (N.C.) switch. With a contact rating of 0.1A at 30VDC, this switch is ideal for a wide range of applications. The PC pins through-hole design ensures easy installation and reliable connection. Whether you need a reliable switch for your electronic projects or industrial applications, the PBH2UOANAGX is an excellent choice.
Search Keywords:
PBH2UOANAGX
IN STOCK: 1,946
Ships today, if you order in
Minimum Order:
25
Factory Lead-Time
14 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
25
$1.339
$33.475
256
$0.977
$250.112
512
$0.967
$495.104
1,024
$0.957
$979.968
2,560
$0.948
$2,426.880
5,120
$0.938
$4,802.560
7,680
$0.929
$7,134.720
10,240 +
$0.919
$9,410.560
Please Note: Item may be subject to tariff fee if shipping within the United States
