307-030-520-202 by edac
DATA SHEET

307-030-520-202

EDAC

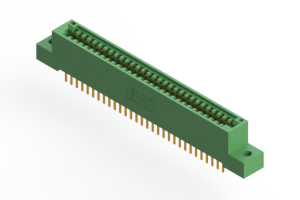

Card Edge Connector - 30 Contacts - 0.156” (3.96mm) Pitch - Dual Row - 0.062” (1.57mm) Thick PCB - Board Mount .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
EDAC
Part No:
307-030-520-202
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Type:
Card Edge
Body Orientation:
Straight
Mounting:
Through Hole
Termination Method:
Solder
Card Thickness:
1.37 to 1.78 mm
Pitch:
3.96 mm
Number of Contacts:
30
Operating Temperature:
-65 to 125 °C
307 Series (.156" (3.96mm) contact spacing) Card Edge Connector with 30 P.C Tail type contacts with gold plating on the contact area. The tails are .046" x .013" (1.17mm x 0.33mm) thick and .213" (5.41mm) long in a Double Row formation, reading both sides of the daughter board. The Insulator is Green in color with ∅.128" (∅3.25mm) Mounting Holes.
Search Keywords:
307030520202
IN STOCK: 0
On Order:
449   can ship 1/16/25
Minimum Order:
25
Multiple:
25
Factory Lead-Time
11 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
25
$8.48
$212.000
50
$7.42
$371.000
100
$6.89
$689.000
250
$6.26
$1,565.000
500
$6.04
$3,020.000
1,000
$5.77
$5,770.000
2,500
$5.71
$14,275.000
5,000 +
$5.65
$28,250.000
Suppliers Standard Package
Tools/3D Models
Request Free CAD Models
PDF 3D CAD Drawings
