DATA SHEET

1LS10

Honeywell

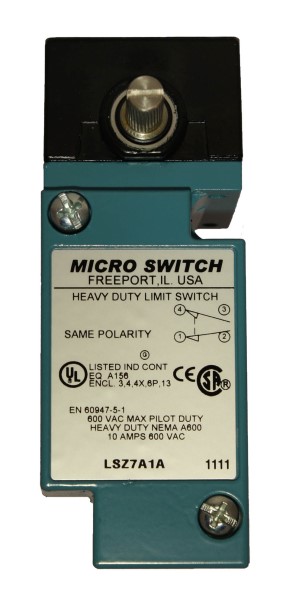

MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Zinc Housing, Non Plug-in Body Style, Side Rotary, Adjustable Aluminum Rod Actuator, Ø 3,2 mm x 200 mm [0.13 in x 7.9 in], 1NC 1NO Single Pole Double Throw (SPDT) Snap Action, Double Break, 10 A 120, 240, or 480 Vac, 0.5 in - 14 NPT Conduit, Operating Temperature: -29 °C to 71 °C [-20 °F to 160 °F], NEMA 1, 3, 4, 6 and 13 .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1LS10
RoHS:
Yes
HTS:
8536509040
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
Type:
Enclosed
Actuator Style:
Side Rotary with Adjustable Rod
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Operating Force:
N/A
Maximum Current Rating:
0.8@115VDC A
Terminal Type:
Conduit
NEMA Standard as Enclosure Rating:
1, 3, 4, 6, 13
Body Orientation:
Straight
The HONEYWELL part 1LS10 MICRO SWITCH„¢ General Purpose Limit Switch is a reliable and durable option for a range of applications. It features an epoxy-coated zinc housing, providing protection against environmental conditions. This non plug-in body style switch has a side rotary design with an adjustable aluminum rod actuator measuring 3.2 mm x 200 mm [0.13 in x 7.9 in].The switch has a 1NC 1NO SPDT snap action configuration, ensuring precise and accurate operation. It also offers a double break mechanism, enhancing its performance and reliability. With a rating of 10 A at 120, 240, or 480 Vac, this limit switch can handle a variety of electrical loads.The 0.5 in - 14 NPT conduit allows for easy installation and connection. The operating temperature range of -29 °C to 71 °C [-20 °F to 160 °F] ensures reliable performance even in harsh environments. The switch is also designed to meet NEMA 1, 3, 4, 6, and 13 standards, making it suitable for a wide range of applications.Overall, the HONEYWELL part 1LS10 MICRO SWITCH„¢ General Purpose Limit Switch offers a combination of durability, versatility, and performance, making it an excellent choice for various industrial and commercial applications.
Product Highlights:
  • Mode of operation is field adjustable
  • NEMA 1, 3, 4, 6, and 13
  • Wide choice of heads and actuators
  • Variety of operating characteristics
  • Captive screws
  • UL and CSA approved parts available
Potential Applications:
  • Machine tools
  • Conveyors
  • Material handling
  • Metal fabrication equipment
  • Lift trucks
Search Keywords:
1LS10
  Possible Replacement options available.  See Alternatives
IN STOCK: 60
Can Ship immediately
Factory Lead-Time
40 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$356.97
$356.970
3
$351.62
$1,054.860
5
$346.34
$1,731.700
10 +
$337.93
$3,379.300
Tools/3D Models
