1SE1-3 by honeywell
DATA SHEET

1SE1-3

Honeywell

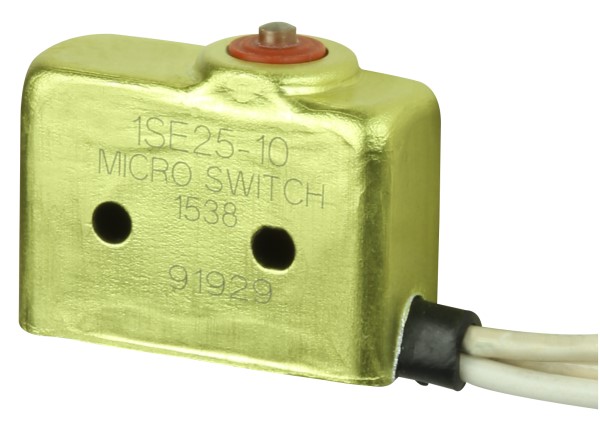

MICRO SWITCH™ Miniature Environmentally Sealed Basic Switches: SE Series, Single Pole Double Throw (SPDT), 5 A at 250 Vac, Stainless Steel Pin Plunger, (3) 914 mm [36 in] Lead Wire Termination (20 Gage), -53 °C to 105 °C [-65 °F to 221 °F] Temperature Range .. see full description

  • RoHS Compliant
  • Packaging

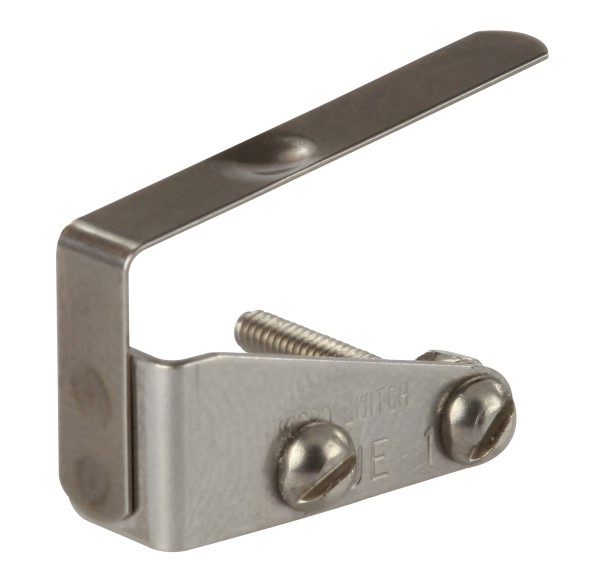

  • Accessories
  • Set Notification
  • Request Programming Quote
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1SE1-3
RoHS:
Yes
HTS:
8536509065
COO:
US
ECCN:
EAR99
Supplier Standard Pack:
10
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Steel/Plunger
Contact Rating @ Voltage:
5@250VAC 30VDC A
Maximum Movement Differential:
0.1 mm
Operating Force:
4.73 N
Termination Style:
Wire Lead
Dimension:
22.25 x 8.79 x 18.92 mm
Body Orientation:
Straight
IP Rating:
N/A

Snap Action Switches, which are also known as micro switches, is a type of momentary contact switch that can rapidly change positions responding to small movements. A Snap Action Switch operates at a rapid speed as it takes very little force or stimulus to operate. This SPDT Snap Switch is widely used in aircraft, ordinance, moist or dusty industrial environments.

1SE1-3 Snap Action Switch from Honeywell comes with SPDT circuitry and a power load switching capability of 7A. This Honeywell switch has a high temperature tolerance up to 149 °C and comes in a very small package size. This environment-sealed basic switch comes with a choice of actuation for design flexibility and precision functionality.

Product Highlights:
  • Choice of actuation
  • Temperature tolerance to 105 °C [221 °F]
  • High temperature construction for use to 149 °C [300 °F]
  • Watertight seal per MIL-PRF-8805, enclosure design symbol 3
  • Very small package size
  • Power load switching capability to 7 A
Search Keywords:
1SE13
IN STOCK: 52
Can Ship immediately
Factory Lead-Time
4 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$157.88
$157.880
3
$155.51
$466.530
5
$145.34
$726.700
10
$141.66
$1,416.600
20 +
$137.73
$2,754.600
