DATA SHEET

1XE1-T

Honeywell

MICRO SWITCH™ Subminiature Environmentally Sealed Basic Switches: XE Series, Single Pole Double Throw (SPDT), 7 A at 28 Vdc, Stainless Steel Enclosure, Solder-Plated Terminals, -53 °C to 105 °C [-65 °F to 221 °F] Temperature Range, Military Part Number MS27994-3 .. see full description

RoHS Compliant
Packaging

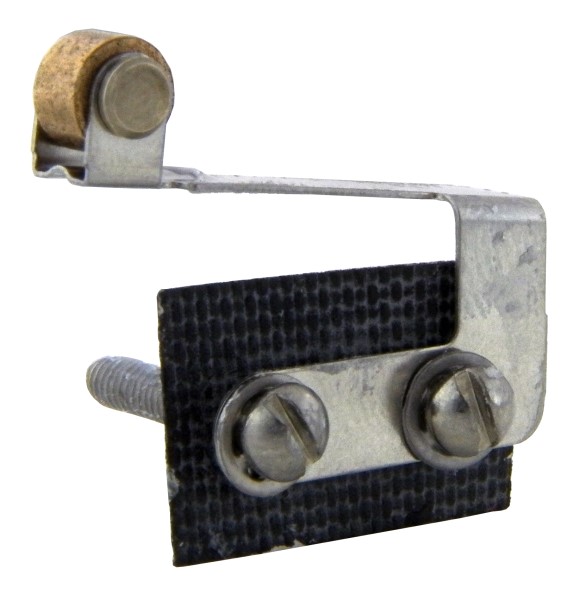

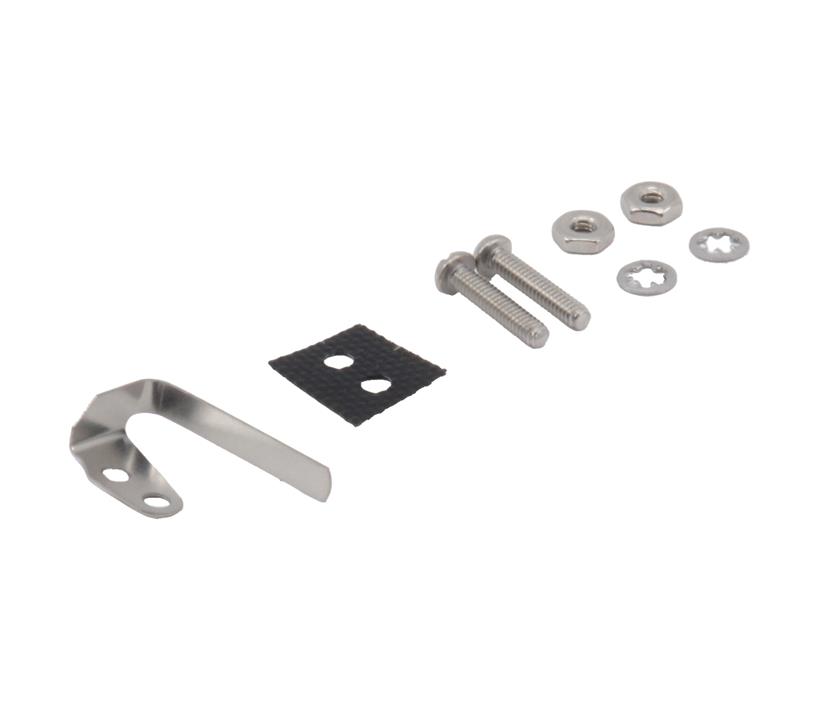

Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1XE1-T
Alias/AKA:
MS27994-3
RoHS:
Yes
HTS:
8536509065
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
Mounting:
Through Hole
Pole Throw Configuration:
SPDT
Switch Configuration:
N.O./N.C.
Actuator Material/Style:
Steel/Plunger
Contact Rating @ Voltage:
7@115VAC 115VDC A
Maximum Movement Differential:
0.13 mm
Operating Force:
4.73 N
Termination Style:
Solder
Dimension:
15.65 x 8.03 x 22.73 mm
Body Orientation:
Straight
IP Rating:
N/A

Snap Action Switches, also known as micro switches, are switch devices that are used to open or close an electrical circuit at a rapid speed. These highly sensitive switches are very often used in military systems, aircraft, ordinance and moist or dusty industrial environments.

1XE1-T Snap Action Switch from Honeywell is an environmentally-sealed, enclosed basic micro switch. It is sealed in a small package within corrosion-resistant aluminum housing for use in tough indoor or outdoor applications where exposure to contaminants is high. This Honeywell Snap Action Switch is designed with a solder termination option to save the installation time. The choice of actuation makes this Electronic Switch apt for various other commercial and industrial applications.

Product Highlights:
  • Very small package size
  • Choice of actuation
  • High temperature construction for use to 149 °C [300 °F]
  • Temperature tolerance to 105 °C [221 °F]
  • Power load switching capability to 7 A
  • Watertight seal per MIL-PRF-8805, enclosure design symbol 3
Potential Applications:
  • Aircraft
  • Ordinance
  • Moist or dusty industrial environments
