M24308/1-4F by itt cannon

M24308/1-4F

ITT CANNON

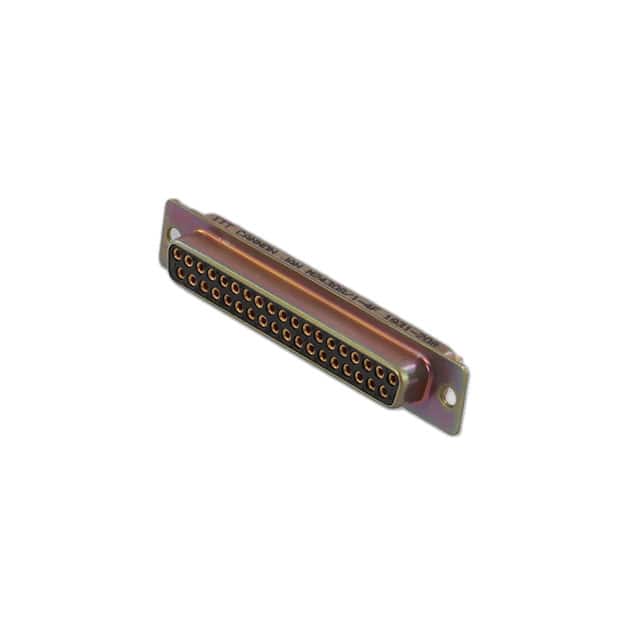

Conn D Subminiature Receptacle 37 Position 4 Shell Size 2.77mm Solder Cup Straight Panel Mount

RoHS Non-Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
ITT CANNON
Part No:
M24308/1-4F
Alias/AKA:
130774-0013-MS
RoHS:
No
HTS:
8536694030
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Dielectric Withstanding Voltage:
1000 VAC at sea level
Contact Finish:
gold over nickel (Performance Class 2)
Contact Type:
Solder Pot
Disclaimer:
Our facility is not currently certified by the DLA and this product is not covered by the QPL/QML.
Color Insulator:
Black
Mating Cycles:
500
Contact Material:
Copper Alloy
Gender:
Socket
Salt Spray Test:
48 hours {96 Hrs for Stainless Steel}
Operating Temperature:
-55°/+150 °
General:
D*M High reliable D-Sub Connectors
Current Rating:
7.5 A max
Contact Resistance:
7.5 milli Ohm max
Shell Material:
Carbon Steel
Insulator Material:
Thermoplastic, type PCT UL 94V-0
Wire Gauge Range Awg:
AWG 20-28
Contact Arrangement:
37 contacts size 20
Hardware:
.120" (3,05mm) Through Hole
Shell Finish:
Cadmium plating
Conn D Subminiature Receptacle 37 Position 4 Shell Size 2.77mm Solder Cup Straight Panel Mount
Search Keywords:
M2430814F
  Possible Replacement options available.  See Alternatives
IN STOCK: 4
Can Ship immediately
On Order:
100   can ship 2/19/25
Factory Lead-Time
18 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$42.53
$42.530
5
$41.04
$205.200
10
$35.61
$356.100
25
$33.90
$847.500
50
$32.64
$1,632.000
100
$31.55
$3,155.000
250 +
$29.81
$7,452.500
Tools/3D Models
Request Free CAD Models
