NC3MD-V by neutrik
DATA SHEET

NC3MD-V

Neutrik

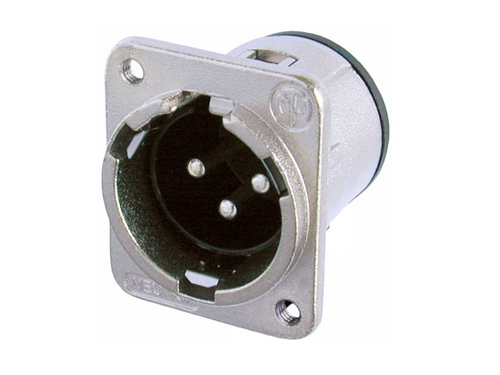

D Series - 3 pole male receptacle, vertical PCB mount - Nickel housing - silver contacts Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component. .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Neutrik
Part No:
NC3MD-V
RoHS:
Yes
HTS:
8536694030
COO:
HU
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
XLR Connector
Gender:
M
Body Orientation:
Straight
Mounting:
Through Hole
Housing Material:
Zinc Die Cast
Number of Contacts:
3
Contact Plating:
Silver over Nickel
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C
The NC3MD-V is 3 pole male receptacle, vertical PCB mount, Nickel housing, silver contacts The NC3MD-V has rated voltage of < 50 V and rated current per contact of 6 A and dielectric strength of 1,5 kVdc . Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.
Product Highlights:
  • D-shape metal shell
  • Optimal RF protection using 3 shield contacts.
  • Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
  • Front or rear panel mount
Search Keywords:
NC3MDV
IN STOCK: 508
Can Ship immediately
On Order:
400   can ship 12/16/24
Minimum Order:
5
Factory Lead-Time
9 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
5
$6.73
$33.650
25
$5.65
$141.250
100
$5.22
$522.000
300
$4.79
$1,437.000
500
$4.72
$2,360.000
1,000
$4.65
$4,650.000
2,500
$4.55
$11,375.000
5,000 +
$4.48
$22,400.000
