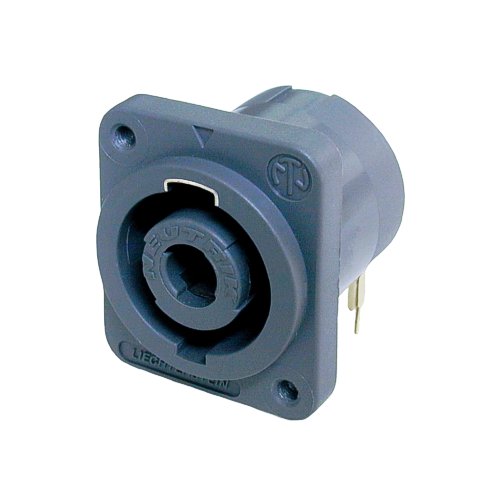

NL4MD-H
NeutrikspeakON Chassis Connectors - 4 pole chassis connector - grey D-size flange - self tapping screw holes (A-screw) - horizontal PCB mount The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. T .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Neutrik
Part No:
NL4MD-H
RoHS:
Yes
HTS:
8536694040
COO:
LI
ECCN:
EAR99
Supplier Standard Pack
100
Type:
Loudspeaker Connector
Gender:
M
Body Orientation:
Right Angle
Mounting:
Through Hole
Housing Material:
Polyamide
Number of Contacts:
4
Contact Plating:
Silver
Termination Method:
Solder
Operating Temperature:
-30 to 80 °C
Life Cycle:
Discontinued & Replaced
4 pole chassis connector, grey D-size flange, self tapping screw holes (A-screw), horizontal PCB mount
The state-of-the-art chassis connector for loudspeaker / amplifier applications. They feature a unique locking system, robust plastic housing and high current silver plated contacts.
The state-of-the-art chassis connector for loudspeaker / amplifier applications. They feature a unique locking system, robust plastic housing and high current silver plated contacts.
Product Highlights:
- Standard current rating 30 Amp
- High current version up to 50 Amp audio current
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
Search Keywords:
NL4MDH
This product is discontinued, but still in stock
IN STOCK:
19,600
Can Ship immediately
Minimum Order:
5
Quantity
Unit Price
Ext. Price
5
$8.65
$43.250
50
$5.59
$279.500
100
$5.53
$553.000
300
$5.07
$1,521.000
500
$4.71
$2,355.000
1,000
$4.43
$4,430.000
2,500
$4.39
$10,975.000
5,000
+
$4.34
$21,700.000
Tools/3D Models
Datasheet
