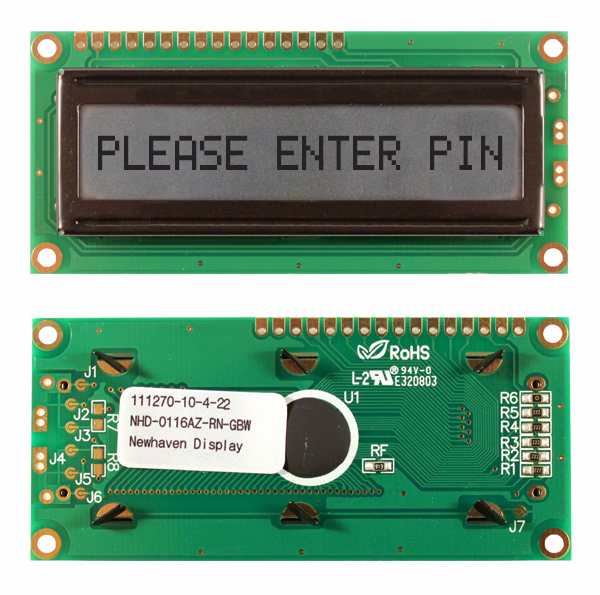

NHD-0116AZ-RN-GBW by newhaven display
DATA SHEET

NHD-0116AZ-RN-GBW

Newhaven Display

LCD Character Display - 1 x 16 Character - STN- Gray - No Backlight - 80.0 x 36.0 mm .. see full description

RoHS Compliant
Bulk Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-0116AZ-RN-GBW
RoHS:
Yes
HTS:
8531200020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Bulk
Display Format:
1 x 16 Characters
Display Type:
STN- GRAY
Display Mode:
Reflective
Text Color:
Blue
Background Color:
Gray
Backlight:
None
Active Area:
N/A
Character Size:
6.56 x 3.07 mm
Interface:
8-Bit Parallel
Supply Voltage:
5 V
Operating Temperature:
-20 to +70 °C
The NHD-0116AZ-RN-GBW is a 1 x 16 Character LCD Character Display. It features a STN- Gray Reflective Display with a No Backlight. Character size is 6.56 x 3.07 mm. It uses an 8-Bit Parallel Interface. Voltage requirement is 5V. Controller required is the SPLC780D or ST7066U
Search Keywords:
NHD0116AZRNGBW
IN STOCK: 80
Can Ship immediately
Manufacturer Stock:
261   can ship 12/9/24
Minimum Order:
5
Factory Lead-Time
15 Weeks can ship 3/10/25
Enter Quantity
Quantity
Unit Price
Ext. Price
5
$10.15
$50.750
25
$9.88
$247.000
50
$9.33
$466.500
100
$8.97
$897.000
250
$8.49
$2,122.500
500
$8.15
$4,075.000
1,000
$8.07
$8,070.000
2,500 +
$7.98
$19,950.000
Tools/3D Models
Request Free CAD Models
Product Guides
PDF Datasheet
