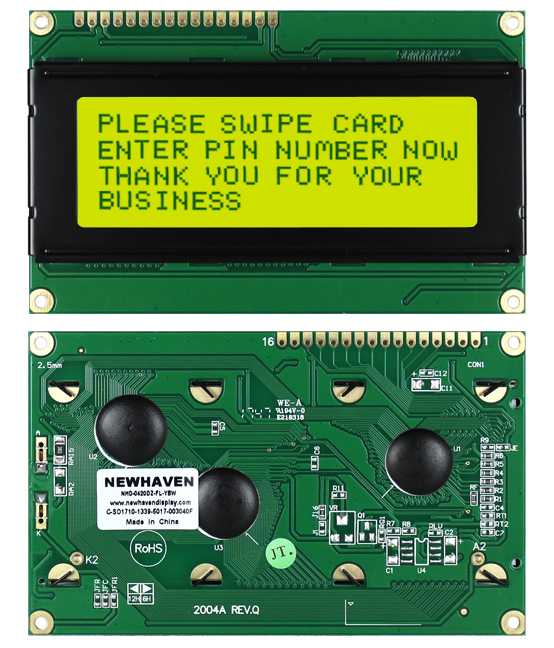

NHD-0420DZ-FL-YBW by newhaven display
DATA SHEET

NHD-0420DZ-FL-YBW

Newhaven Display

LCD Character Display - 4 x 20 Character - STN-Yellow/Green - Yellow/Green Backlight - 98.0 x 60.0 mm .. see full description

RoHS Compliant
Bulk Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Newhaven Display
Part No:
NHD-0420DZ-FL-YBW
RoHS:
Yes
HTS:
8531200020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Bulk
Display Format:
4 x 20 Characters
Display Type:
STN- Y/G
Display Mode:
Transflective
Text Color:
Blue
Background Color:
Yellow/Green
Backlight:
LED - Yellow/Green
Active Area:
70.4 x 20.8 mm
Character Size:
4.75 x 2.95 mm
Dimension:
98 x 60 x 14 mm
Interface:
8-Bit Parallel
Supply Voltage:
5 V
Operating Temperature:
-20 to +70 °C
The NHD-0420DZ-FL-YBW is a 4 x 20 Character LCD Character Display. It features a STN-Yellow/Green Transflective Display with a Yellow/Green Backlight. Character size is 4.75 x 2.95 mm. It uses an 8-Bit Parallel Interface. Voltage requirement is 5V. Controller required is the SPLC780D or ST7066U
Search Keywords:
NHD0420DZFLYBW
IN STOCK: 2,166
Ships today, if you order in
Manufacturer Stock:
3,035   can ship 12/2/24
Factory Lead-Time
15 Weeks can ship 3/6/25
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$27.75
$27.750
10
$20.88
$208.800
25
$19.54
$488.500
50
$18.02
$901.000
100
$17.75
$1,775.000
250
$17.48
$4,370.000
500 +
$17.22
$8,610.000
Tools/3D Models
Request Free CAD Models
