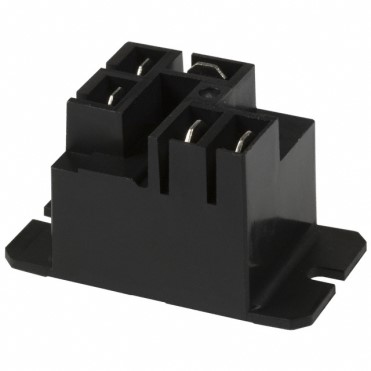

G7L-1A-TUB-J-CB-AC100/120
Omron ElectronicsGeneral Purpose Relay SPST-NO (1 Form A) 120VAC Coil Chassis Mount .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Omron Electronics
Part No:
G7L-1A-TUB-J-CB-AC100/120
RoHS:
Yes
HTS:
8536490075
COO:
ID
ECCN:
EAR99
Package Type:
Relay Construction:
Non-Latching
AC Coil Voltage:
100,120 V
DC Coil Voltage:
N/A
Contact Arrangement:
SPST-NO
Maximum Current Rating:
30 A
Mounting:
Bracket Mount
Termination Style:
0.25Quick Connect
Push to Test Button:
Yes
Led Indicator:
No
Operating Temperature:
-20 to 60 °C
The G7L-1A-TUB-J-CB-AC100/120 is a Power Relay with AC coil. This G7L-series relay has 1NO (SPST) Ag alloy contact with test button. High-capacity, High-dielectric-strength relay compatible with momentary voltage drops. 0.25 inch quick-connect terminals and upper bracket mounting. UL Class B construction standard. Safety design with contact gap of 3mm.
Wide-range AC-activated coil
Miniature size for maximum switching power, particularly for inductive loads
Flame-resistant materials (UL94V-0 qualifying) used for all insulation material
No contact chattering for momentary voltage drops up to 50% of rated voltage
-25 to 60°C Operating temperature range
Applications
Power Management, HVAC, Lighting, Motor Drive & Control
Search Keywords:
G7L1ATUBJCBAC100120
IN STOCK:
21,913
Can Ship immediately
Manufacturer Stock:
13,251
can ship
7/8/24
Minimum Order:
20
Factory Lead-Time
14 Weeks
can ship
10/14/24
Quantity
Unit Price
Ext. Price
20
$8.50
$170.000
40
$8.41
$336.400
60
$8.37
$502.200
100
$8.33
$833.000
260
$8.29
$2,155.400
500
$8.25
$4,125.000
1,000
+
$8.20
$8,200.000
