JQ1-5V-F by panasonic electronic components
DATA SHEET

JQ1-5V-F

Panasonic Electronic Components

Electromechanical Relay 5VDC 62.5Ohm 5(NO)/2(NC)A SPDT (20x10x16)mm THT Power Relay .. see full description

RoHS Compliant
BOX Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JQ1-5V-F
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BOX
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
5 V
Contact Arrangement:
SPDT
Maximum Current Rating:
5(NO)/2(NC) A
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 70 °C
Coil Resistance:
62.5 Ohm
Life Cycle:
Discontinued & Replaced
The PANASONIC EW/AROMAT JQ1-5V-F Electromechanical Relay is a reliable and high-performance component designed for various applications. With a coil voltage of 5VDC and a low resistance of 62.5Ohm, this power relay offers excellent efficiency and responsiveness. It features a single-pole double-throw (SPDT) configuration with 5 normally open (NO) and 2 normally closed (NC) positions, providing versatile switching capabilities. With compact dimensions of 20x10x16mm, this through-hole (THT) relay is easy to install on circuit boards or within electronic systems. Trust PANASONIC EW/AROMAT JQ1-5V-F to deliver precision and durability in your electrical projects.
Search Keywords:
JQ15VF
  This product is discontinued, but still in stock
IN STOCK: 3,168
Can Ship immediately
Minimum Order:
10
Enter Quantity
Quantity
Unit Price
Ext. Price
10
$3.81
$38.100
50
$3.19
$159.500
300
$2.87
$861.000
500
$2.83
$1,415.000
1,000
$2.71
$2,710.000
2,500
$2.64
$6,600.000
5,000
$2.57
$12,850.000
7,500 +
$2.53
$18,975.000
RECOMMENDED REPLACEMENT

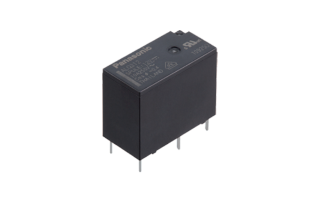

ALQ105
ALQ105
VIEW PRODUCT
