JS1-B-12V-F by panasonic electronic components
DATA SHEET

JS1-B-12V-F

Panasonic Electronic Components

Power Relay 12VDC 5DC/10AAC SPDT(22x16x16.4)mm THT .. see full description

RoHS Compliant
BOX Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Panasonic Electronic Components
Part No:
JS1-B-12V-F
RoHS:
Yes
HTS:
8536410050
COO:
TH
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
BOX
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPDT
Maximum Current Rating:
10
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 85 °C
Coil Resistance:
400 Ohm
Life Cycle:
Discontinued & Replaced
The PANASONIC EW/AROMAT part JS1-B-12V-F is a compact and reliable power relay with a coil voltage of 12VDC. It is capable of handling a current of 5DC and 10AAC. This Single Pole Double Throw (SPDT) relay has a compact size of 22x16x16.4mm, making it suitable for various applications where space is limited. It is designed for Through-Hole Technology (THT) mounting, ensuring easy installation and secure connection. This power relay offers reliable performance and is ideal for use in a wide range of electronic devices and industrial applications.
Search Keywords:
JS1B12VF
  This product is discontinued, but still in stock
IN STOCK: 11,957
Can Ship immediately
Minimum Order:
100
Multiple:
100
Enter Quantity
Quantity
Unit Price
Ext. Price
100
$1.99
$199.000
200
$1.75
$350.000
500
$1.54
$770.000
1,000
$1.39
$1,390.000
2,000 +
$1.21
$2,420.000
Suppliers Standard Package

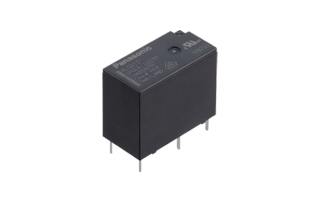

RECOMMENDED REPLACEMENT
ALQ112
ALQ112
VIEW PRODUCT
Tools/3D Models
Request Free CAD Models
