DATA SHEET

1648296

Phoenix Contact

HEAVYCON pin insert - B24 series - 24-pos. - screw connection

RoHS Compliant
Packaging

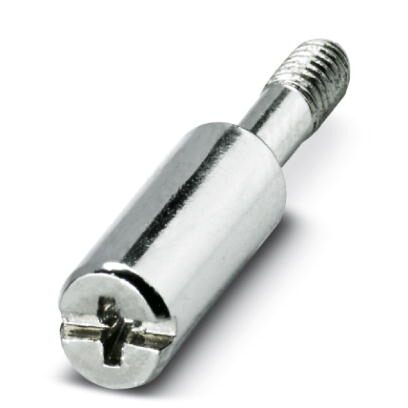

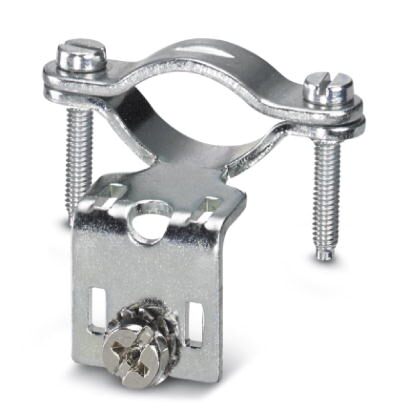

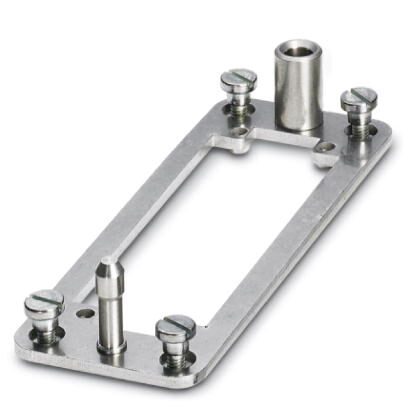

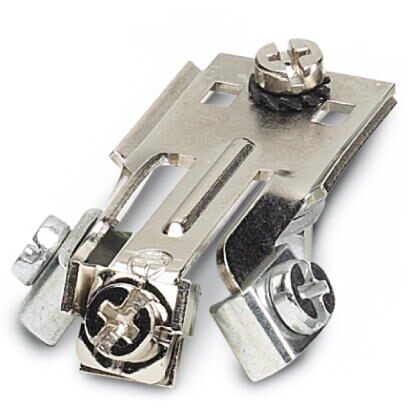

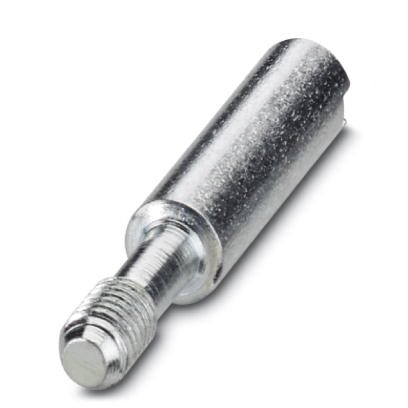

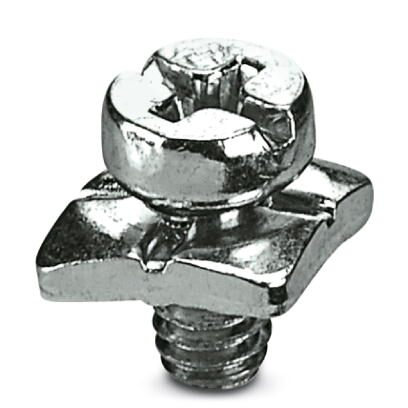

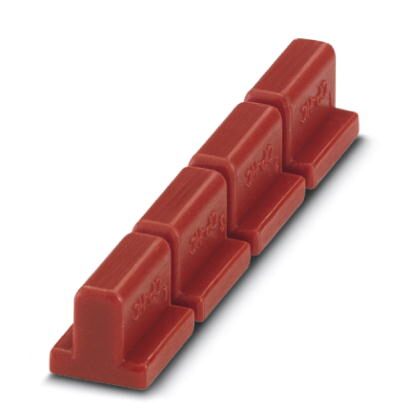

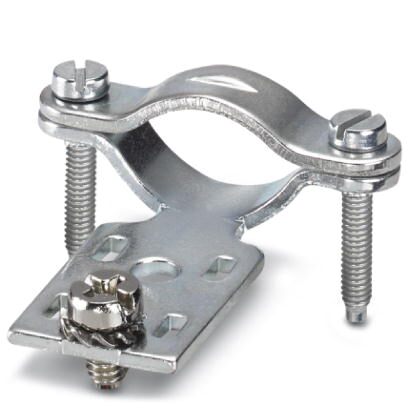

Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1648296
Alias/AKA:
HC-B 24-I-UT-M
RoHS:
Yes
HTS:
8536694030
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
Rectangular
Mounting:
Panel Mount
Body Orientation:
Straight
Gender:
PL
Pitch:
N/A
Termination Method:
Screw
Number of Contacts:
24
Maximum Voltage Rating:
500 V
Maximum Current Rating:
16 A
Operating Temperature:
-40 to 125 °C
1648296 is a 24-position, HEAVYCON B24 series pin insert. This screw connected pin insert has once connections per position and 24+PE positions. Conductor cross section is 14 to 20 AWG.
Search Keywords:
1648296
IN STOCK: 31
Ships today, if you order in
Manufacturer Stock:
1,796   can ship 11/22/24
Factory Lead-Time
17 Weeks can ship 3/7/25
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$27.38
$27.380
5
$23.85
$119.250
25
$22.68
$567.000
50
$21.49
$1,074.500
100
$20.99
$2,099.000
250
$20.67
$5,167.500
500 +
$20.36
$10,180.000
Tools/3D Models
Request Free CAD Models
Product Guides
PDF Datasheet
