1754465
Phoenix ContactPCB connector - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1754465
Alias/AKA:
MSTB 2 5/ 3-ST
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack
100
Package Type:
Bulk
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
5 mm
Number of Circuits:
3
Maximum Voltage Rating:
250@IEC,300@UL V
Maximum Current Rating:
12 A
Wire Size:
12-24 AWG
Operating Temperature:
N/A
The MSTB 2,5/ 3-ST is a 3-position green pluggable PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This 1754465 terminal block provides individual position coding by inserting coding profiles. It accepts 24 to 12AWG wire range.
Plug-in direction parallel to the conductor axis
7mm Stripping length
UL94V-0 Flammability rating
Applications
Industrial
Search Keywords:
1754465
IN STOCK:
5,274
Can Ship immediately
Manufacturer Stock:
10,318
can ship
12/6/24
Minimum Order:
10
Factory Lead-Time
3 Weeks
can ship
12/12/24
Quantity
Unit Price
Ext. Price
1
$3.421
$3.421
10
$3.110
$31.100
50
$2.760
$138.000
300
$2.340
$702.000
500
$2.310
$1,155.000
1,000
$2.270
$2,270.000
2,500
$2.220
$5,550.000
5,000
$2.190
$10,950.000
7,500
+
$2.150
$16,125.000
Product Guides
Product Changes
Accessories

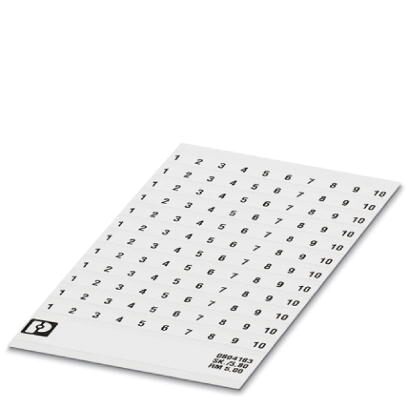

0804183
Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

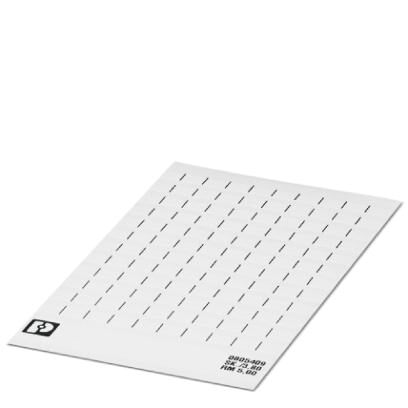

0805409
Marker card - Card - white - unlabeled - can be labeled with: Marker pen - mounting type: ...
1051993
Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...

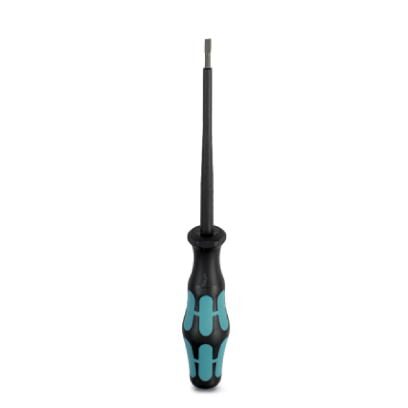

1205053
Actuation tool - for ST terminal blocks - insulated - also suitable for use as a bladed sc ...
1733169
Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch
1733172
Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch

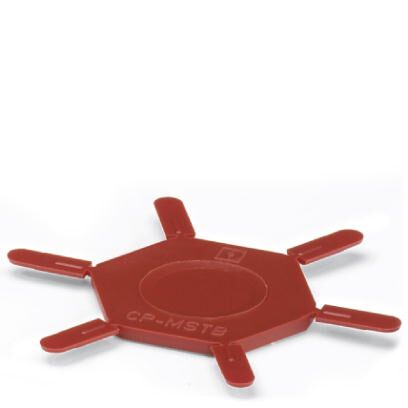

1734634
Coding profile - is inserted into the slot on the plug or inverted header - red insulating ...

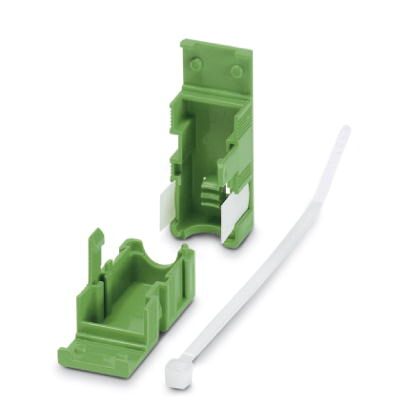

1803947
Cable housing - pitch: 0 mm - number of positions: 3 - dimension a: 15 mm - color: green
