DATA SHEET

1755781

Phoenix Contact

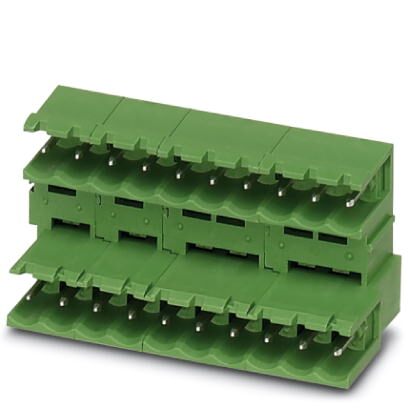

PCB headers - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 7 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.9 mm .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1755781
Alias/AKA:
MSTBVA 2 5/ 7-G-5 08
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header (4 Sides)
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
5.08 mm
Number of Contacts:
7
Maximum Voltage Rating:
250@IEC,300@UL V
Maximum Current Rating:
12 A
Termination Method:
Solder
Operating Temperature:
N/A
The PHOENIX CONTACT part 1755781 is a high-quality PCB header designed for efficient electrical connections. With a nominal current rating of 12A and a rated voltage of 320V, this header ensures reliable and safe operation. The 2.5mm² nominal cross section ensures sufficient power transmission, while the 7-position layout allows for versatile applications.The 5.08mm pitch facilitates easy installation and secure connections. This PCB header comes in a vibrant green color, making it easy to identify and differentiate. The tin contact surface improves conductivity and longevity, while the wave soldering mounting method enables quick and efficient assembly.Featuring a linear pin layout and 3.9mm solder pin length, this header offers compatibility with a wide range of PCB designs and applications. Whether used in industrial controls or electronic systems, the PHOENIX CONTACT part 1755781 provides a reliable and durable solution for your electrical connectivity needs.
Search Keywords:
1755781
IN STOCK: 915
Can Ship immediately
Manufacturer Stock:
10,736   can ship 11/18/24
Minimum Order:
100
Multiple:
100
Factory Lead-Time
6 Weeks can ship 12/17/24
Enter Quantity
Quantity
Unit Price
Ext. Price
100
$1.63
$163.000
300
$1.59
$477.000
500
$1.56
$780.000
1,000
$1.54
$1,540.000
2,500
$1.52
$3,800.000
5,000
$1.50
$7,500.000
7,500
$1.47
$11,025.000
10,000 +
$1.45
$14,500.000
Suppliers Standard Package
Tools/3D Models
Request Free CAD Models
Product Guides
PDF Datasheet
