1792812
Phoenix ContactPCB connector - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 8 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1792812
Alias/AKA:
MVSTBW 2 5/ 8-ST-5 08
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack
50
Type:
Terminal Block
Mounting:
Cable Mount
Gender:
F
Termination Method:
Screw
Pitch:
5.08 mm
Number of Circuits:
8
Maximum Voltage Rating:
320 V
Maximum Current Rating:
12 A
Wire Size:
12-24 AWG
Operating Temperature:
N/A
The PHOENIX CONTACT part 1792812 is a PCB connector designed for reliable and efficient electrical connections. With a nominal current rating of 12 A and a rated voltage of 320 V (III/2), this connector is suitable for a variety of applications. Featuring a compact design, it has 8 positions and a pitch of 5.08 mm, making it easy to install and connect. The screw connection with tension sleeve ensures secure and vibration-resistant connections, while the green color adds visibility and aesthetics to the overall assembly.With a nominal cross-section of 2.5 mm² and a contact surface treated with tin plating, this connector provides optimal conductivity and durability. Whether you're working on a personal project or an industrial application, the PHOENIX CONTACT part 1792812 is a reliable choice for your PCB connection needs.
Search Keywords:
1792812
IN STOCK:
842
Can Ship immediately
Minimum Order:
5
Factory Lead-Time
6 Weeks
Quantity
Unit Price
Ext. Price
5
$9.10
$45.500
25
$8.12
$203.000
50
$7.54
$377.000
100
$7.23
$723.000
250
$7.04
$1,760.000
500
$6.85
$3,425.000
1,000
+
$6.75
$6,750.000
Product Guides
Accessories
1051993
Marker pen - for manual labeling of unprinted Zack strips - smear-proof and waterproof - l ...
0804293
Marker card - Card - white - labeled - Horizontal: consecutive numbers 1 ... 10 - 11 ... 2 ...

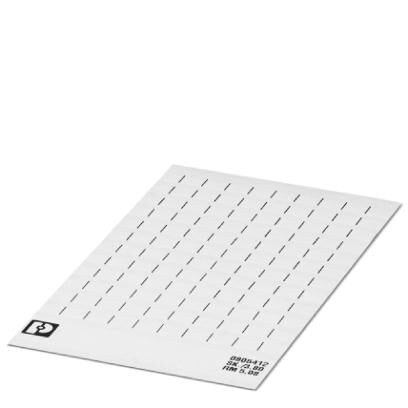

0805412
