1803507

Phoenix Contact

PCB headers - nominal current: 8 A - rated voltage (III/2): 160 V - nominal cross section: 1.5 mm² - number of positions: 10 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.4 mm .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1803507
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Type:
Shrouded Header (4 Sides)
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
3.81 mm
Number of Contacts:
10
Maximum Voltage Rating:
160 V
Maximum Current Rating:
8 A
Termination Method:
Solder
Operating Temperature:
N/A
The PHOENIX CONTACT PCB header part 1803507 is designed for high-performance applications with a nominal current rating of 8 A and a rated voltage of 160 V. This header features a nominal cross-section of 1.5 mm², 10 positions with a pitch of 3.81 mm, and a bright green color for easy identification. The contact surface is coated with tin for improved conductivity, and the header is compatible with wave soldering mounting techniques. The linear pinning layout and solder pin length of 3.4 mm make it easy to integrate into various PCB designs.
Search Keywords:
1803507
IN STOCK: 640
Ships today, if you order in
Minimum Order:
5
Factory Lead-Time
4 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
5
$4.21
$21.050
50
$3.51
$175.500
100
$3.45
$345.000
300
$3.17
$951.000
500
$3.09
$1,545.000
1,000
$3.04
$3,040.000
2,500
$2.97
$7,425.000
5,000 +
$2.92
$14,600.000
Suppliers Standard Package
Older Equivalent

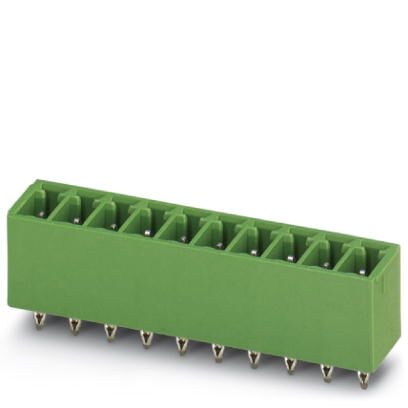

1860728
