DATA SHEET

1933228

Phoenix Contact

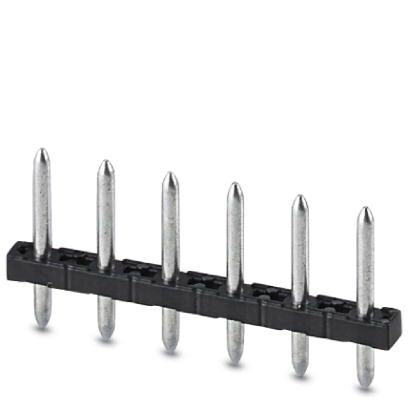

Pin strip - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 1.5 mm² - number of positions: 6 - pitch: 5 mm - color: black - contact surface: Tin - mounting: THR soldering - pin layout: Linear pinning - solder pin [P]: 3.5 mm - The maximum current depends on the plug used. The lower of the two current values apply for plug and pin strip. The pin strip is made of highly temperature resistant plastic and is thus suitable for the reflow process. .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1933228
Alias/AKA:
PST 1 3/ 6-5 0
RoHS:
Yes
HTS:
8536694040
COO:
DE
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Type:
Unshrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
5 mm
Number of Contacts:
6
Maximum Voltage Rating:
320 V
Maximum Current Rating:
12 A
Termination Method:
Solder
Operating Temperature:
N/A
The PHOENIX CONTACT part 1933228 is a pin strip with a nominal current rating of 12 A and a rated voltage of 320 V (III/2). It has a nominal cross section of 1.5 mm² and 6 positions, with a pitch of 5 mm. The pin strip is black in color and has a contact surface made of tin. It is designed for mounting through-hole reflow (THR) soldering and has a linear pin layout. The solder pin has a length of 3.5 mm. The maximum current capacity depends on the plug used, with the lower value applying to both the plug and pin strip. The pin strip is made of highly temperature resistant plastic, making it suitable for the reflow process.
Search Keywords:
1933228
IN STOCK: 2,669
Ships today, if you order in
Manufacturer Stock:
90   can ship 11/29/24
Minimum Order:
50
Multiple:
50
Factory Lead-Time
4 Weeks can ship 12/13/24
Enter Quantity
Quantity
Unit Price
Ext. Price
50
$0.6268
$31.340
250
$0.5571
$139.275
1,000
$0.5239
$523.900
2,500
$0.4743
$1,185.750
5,000
$0.4672
$2,336.000
7,500
$0.4558
$3,418.500
10,000
$0.4490
$4,490.000
15,000 +
$0.4423
$6,634.500
Suppliers Standard Package
Tools/3D Models
Request Free CAD Models
Product Guides
PDF Datasheet
