DATA SHEET

2761606

Phoenix Contact

D-SUB connector - 15-pos - male connector - one cable entry < 35° - universal type for all systems - pin assignment: 1 - 2 - 3 - ... - 14 - 15 to screw connection terminal block .. see full description

RoHS Compliant
Packaging

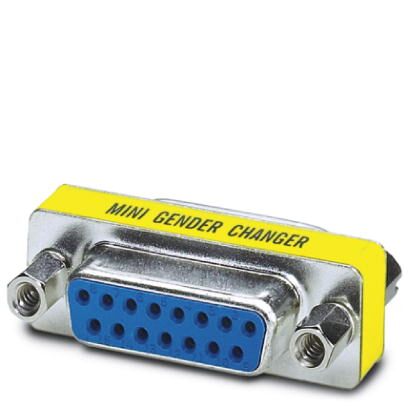

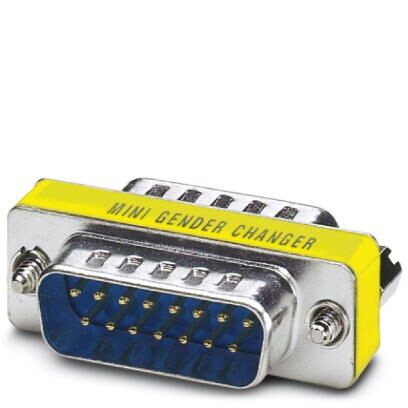

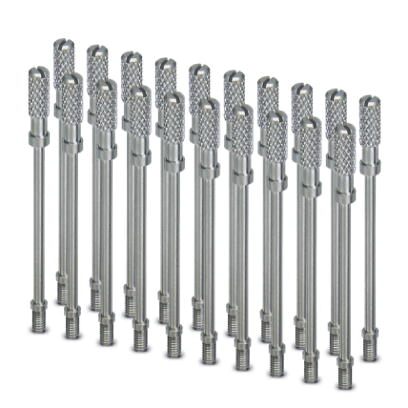

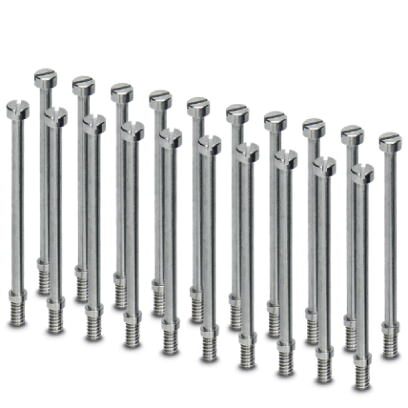

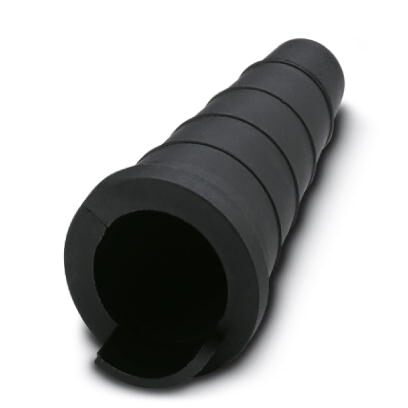

Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2761606
Alias/AKA:
SUBCON 15/M-SH
RoHS:
Yes
HTS:
8536694030
COO:
DE
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Type:
D-Subminiature Module
Body Orientation:
Right Angle
Gender:
M
Pitch:
N/A
Number of Contacts:
15
Operating Temperature:
-20 to 75 °C
D-SUB connector, 15-pos, male connector, one cable entry < 35°, universal type for all systems, pin assignment: 1, 2, 3, ..., 14, 15 to screw connection terminal block. Max. cable diameter 10 mm, Min. cable diameter 4 mm, Width 16 mm, Height 55 mm, Length 65 mm, Ambient temperature (operation) -20 °C - 75 °C
Search Keywords:
2761606
IN STOCK: 22
Can Ship immediately
Factory Lead-Time
19 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$77.09
$77.090
5
$72.41
$362.050
10
$68.28
$682.800
25
$63.72
$1,593.000
50
$62.77
$3,138.500
100
$61.83
$6,183.000
250 +
$59.74
$14,935.000
Tools/3D Models
Request Free CAD Models
Product Guides
PDF Datasheet
