2866381 by phoenix contact
DATA SHEET

2866381

Phoenix Contact

AC/DC DIN Rail Power Supply (PSU) - ITE - 1 Output - 480 W - 24 VDC - 20 A. .. see full description

  • RoHS Compliant
  • Packaging
  • Accessories
  • Set Notification
  • Request Programming Quote
  • End of Life: Final orders must be placed by 11/30/2024
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2866381
RoHS:
Yes
HTS:
8504407007
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:
1
Type:
Switching
Style:
DIN Rail
AC Input Voltage:
N/A
Number of Outputs:
1
Output Voltage:
24 V
Maximum Output Current:
20 A
Maximum Output Power:
480 W
Input Connector Type:
Screw Terminal Block
Dimension:
152.5 x 115 x 130 mm
End of Life:
Final orders must be placed by 11/30/2024
The 2866381 is a 1-phase DIN-rail mount primary switched Power Supply with basic functions. It is particularly suited for use in series production in mechanical engineering. The high MTBF of 500000-hour stands for high supply reliability. The device can be connected in parallel to increase the capacity and redundancy. The clear LED signalling and the device connection with double terminal block for plus and minus for fast potential distribution are further advantages of this device series. A third terminal block for minus simplifies the grounding on the secondary side. All power supply unit is idle proof and short circuit proof and provide a regulated and settable output voltage of 22.5 to 29.5VDC.
Search Keywords:
2866381
  End of Life: Final orders must be placed by 11/30/2024
IN STOCK: 54
Can Ship immediately
Manufacturer Stock:
25   can ship 10/28/24
Factory Lead-Time
11 Weeks can ship 12/30/24
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$466.17
$466.170
3
$459.17
$1,377.510
5
$452.29
$2,261.450
10 +
$445.50
$4,455.000

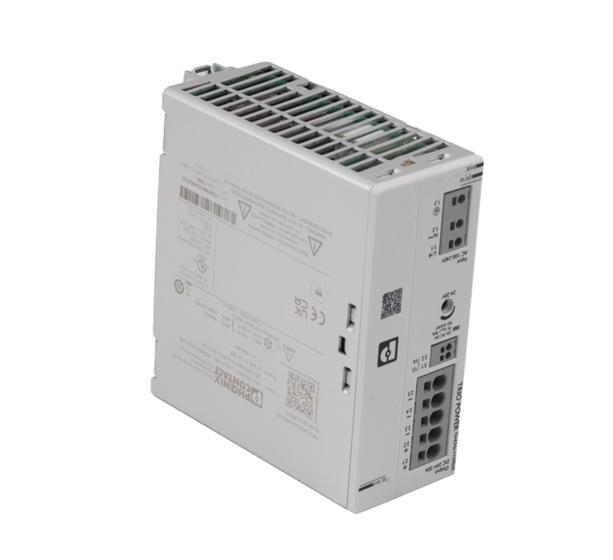

RECOMMENDED REPLACEMENT
1159039
1159039
VIEW PRODUCT
