2902829
Phoenix Contact2-way loop-powered isolating amplifier (supplied on the output side) - can be configured via DIP switches - with screw connection technology and standard configuration. .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
2902829
Alias/AKA:
MINI MCR-SL-UI-I-LP-NC
RoHS:
Yes
HTS:
8543709860
COO:
DE
ECCN:
EAR99
Supplier Standard Pack
1
Package Type:
The 6.2 mm wide MINI MCR-SL-UI-I-LP... configurable 2-way isolating amplifier is used to electrically isolate, condition, and filter analog signals. The output loops that supply the loop-powered isolating amplifier enable the isolating amplifier to operate on an active analog input module. The modules are supplied via the current loop of the controller. On the input side, standard analog signals and non-standard analog signals can be connected, starting from 2 mA or 50 mV up to 40 mA or 30 V. These are converted to a 4...20 mA signal.
The DIP switches accessible on the housing side enable the configuration of input signal ranges. Series MCR Series
Current Rating 20 mA
Mounting Type DIN Rail
Output Type Analog
Supply Voltage 20 to 30 VDC
Maximum Operating Temperature +70 °C
Minimum Operating Temperature -25 °C
Termination Screw
Type Amplifier
Input Type Current, Voltage
Module Type Isolation
Temperature Operating Range -25 to +70 °C
Special Features Configurable 2-Way Isolation Amplifier
Output Current
Search Keywords:
2902829
IN STOCK:
7
Ships today, if you order in
Factory Lead-Time
5 Weeks
Quantity
Unit Price
Ext. Price
1
$363.70
$363.700
3
$348.96
$1,046.880
5
$343.72
$1,718.600
10
+
$335.36
$3,353.600
Product Guides
Accessories

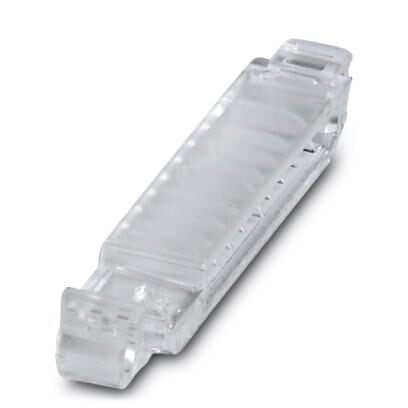

MINI MCR DKL
Fold up transparent cover for MINI MCR modules with additional labeling option using inser ...

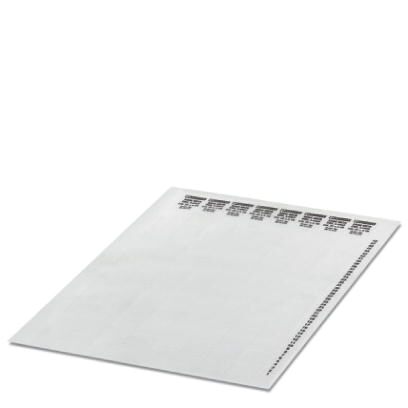

MINI MCR-DKL-LABEL
