DATA SHEET

3009118

Phoenix Contact

High-current terminal block - nom. voltage: 1000 V - nominal current: 150 A - connection method: Screw connection - number of connections: 2 - cross section: 16 mm² - 70 mm² - AWG: 6 - 2/0 - width: 20 mm - height: 76 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 - NS 32 - NS 35/15-2,3 .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3009118
RoHS:
Yes
HTS:
8536904000
COO:
IN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Type:
Universal Terminal Block
Mounting:
G DIN Rail,T DIN Rail
Gender:
N/A
Termination Method:
Screw
Pitch:
N/R
Number of Circuits:
1
Maximum Voltage Rating:
1000 V
Maximum Current Rating:
150 A
Wire Size:
(2/0)-6 AWG
Operating Temperature:
N/A
Joining multiple circuits is easy with this universal terminal blocks 3009118 PCB terminal block from Phoenix Contact. It has a maximum voltage rating of 1000 V. This is a 2-row connector. 3009118 is housed in polyamide. This device has a maximum current rating of 150 A. It uses the screw termination method. This product is 70.5 mm long, 83.5 mm tall and 20 mm deep. Its wire is 6-(1/0) AWG.
Search Keywords:
3009118
IN STOCK: 19
Ships today, if you order in
Manufacturer Stock:
554   can ship 12/2/24
Factory Lead-Time
5 Weeks can ship 12/20/24
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$33.77
$33.770
5
$31.72
$158.600
10
$31.25
$312.500
30
$28.68
$860.400
100
$27.92
$2,792.000
250
$26.84
$6,710.000
500 +
$26.17
$13,085.000
Suppliers Standard Package

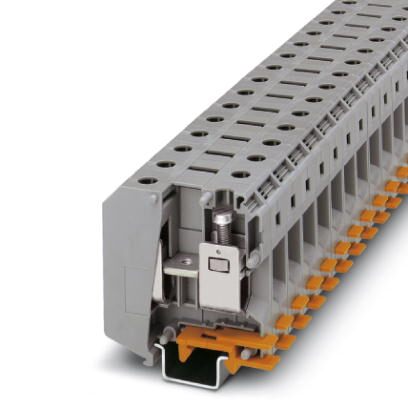

Older Equivalent
UKH 50
UKH 50
VIEW PRODUCT
Tools/3D Models
Request Free CAD Models
Product Guides
PDF Datasheet
