3044131
Phoenix ContactFeed-through terminal block - nom. voltage: 1000 V - nominal current: 41 A - connection method: Screw connection - number of connections: 2 - cross section: 0.2 mm² - 10 mm² - AWG: 24 - 8 - width: 8.2 mm - height: 46.9 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3044131
Alias/AKA:
UT 6
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Supplier Standard Pack
50
Type:
Universal Terminal Block
Mounting:
T DIN Rail
Gender:
F
Termination Method:
Screw
Pitch:
N/R
Number of Circuits:
1
Maximum Voltage Rating:
1000 V
Maximum Current Rating:
41 A
Wire Size:
8-24 AWG
Operating Temperature:
N/A
The UT 6 is a 2-position 1-level grey Feed-through Terminal Block with a polyamide insulator, the M4 screw connection and the NS 35/7,5, NS 35/15 mounting. This 3044131 terminal block accepts 24 to 8AWG wire range. The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section. As well as saving space, the compact design enables user-friendly wiring in a small amount of space. The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section.
Optimum screwdriver guidance through closed screw shafts
Multi-conductor connection offers maximum flexibility and wiring density
10mm Stripping length
UL94V-0 Flammability rating
Applications
Industrial, Automation & Process Control
Search Keywords:
3044131
IN STOCK:
3,440
Ships today, if you order in
Manufacturer Stock:
195,482
can ship
11/29/24
Minimum Order:
50
Multiple:
50
Factory Lead-Time
5 Weeks
can ship
12/20/24
Quantity
Unit Price
Ext. Price
50
$1.80
$90.000
250
$1.50
$375.000
500
$1.48
$740.000
1,000
$1.34
$1,340.000
2,500
$1.32
$3,300.000
5,000
$1.29
$6,450.000
7,500
$1.27
$9,525.000
10,000
+
$1.25
$12,500.000
Tools/3D Models
Product Guides
Datasheet
Product Changes
PCN - 01-Jan-2015 - INTRODUCTION OF 2D BARCODING
Accessories
CLIPFIX 35-5
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail - with marking option ...
ATP-UT
Partition plate - length: 53.4 mm - width: 2.2 mm - height: 45.7 mm - color: gray
DP PS-8
Spacer plate - length: 22.4 mm - width: 8.2 mm - height: 29 mm - number of positions: 1 - ...
FBS 6-8 BU
Plug-in bridge - pitch: 8.2 mm - width: 47.5 mm - number of positions: 6 - color: blue
FBS 10-8 BU
Plug-in bridge - pitch: 8.2 mm - width: 80.3 mm - number of positions: 10 - color: blue
E/NS 35 N
End clamp - width: 9.5 mm - color: gray
FBSR 2-8
Plug-in bridge - pitch: 8.2 mm - width: 14.8 mm - number of positions: 2 - color: red
FBS 3-8
Plug-in bridge - pitch: 8.2 mm - width: 22.9 mm - number of positions: 3 - color: red
FBS 3-8 BU
Plug-in bridge - pitch: 8.2 mm - width: 22.9 mm - number of positions: 3 - color: blue
FBS 4-8
Plug-in bridge - pitch: 8.2 mm - width: 31.1 mm - number of positions: 4 - color: red
FBS 5-8
Plug-in bridge - pitch: 8.2 mm - width: 39.3 mm - number of positions: 5 - color: red
FBS 6-8
Plug-in bridge - pitch: 8.2 mm - width: 47.5 mm - number of positions: 6 - color: red
NS 35/15 WH PERF 2000MM
DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...
NS 35/15 CU UNPERF 2000MM
DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...
FBSRH 3-8
Short-circuit connector - pitch: 8.2 mm - width: 22.9 mm - number of positions: 3 - color: ...
PAI-4-FIX BK
Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: black
PAI-4-FIX BN
Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: brown
PAI-4-FIX BU
Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: blue
PAI-4-FIX GN
Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: green
PAI-4-FIX GY
Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: gray
PAI-4-FIX RD
Test adapter - for 4 mm test plug and terminal blocks with 8.2 mm pitch - color: red

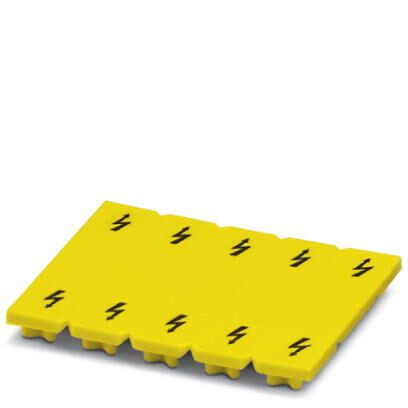

WS UT 6
