3044160
Phoenix ContactFeed-through terminal block - nom. voltage: 1000 V - nominal current: 57 A - connection method: Screw connection - number of connections: 2 - cross section: 0.5 mm² - 16 mm² - AWG: 20 - 6 - width: 10.2 mm - height: 46.9 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3044160
Alias/AKA:
UT 10
RoHS:
Yes
HTS:
8536904000
COO:
DE
ECCN:
EAR99
Supplier Standard Pack
50
Type:
Universal Terminal Block
Mounting:
T DIN Rail
Gender:
F
Termination Method:
Screw
Pitch:
N/R
Number of Circuits:
1
Maximum Voltage Rating:
1000 V
Maximum Current Rating:
57 A
Wire Size:
6-20 AWG
Operating Temperature:
N/A
The UT 10 is a 2-position 1-level grey Feed-through Terminal Block with a polyamide insulator, the screw connection and the NS 35/7,5, NS 35/15 mounting. This 3044160 terminal lock has the compact design enables user-friendly wiring in a small amount of space. The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section. The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section. It accepts 20 to 6AWG wire range.
Half-sine shock form
Optimum screwdriver guidance through closed screw shafts
Multi-conductor connection offers maximum flexibility and wiring density
10mm Stripping length
UL94V-0 Flammability rating
Applications
Industrial, Automation & Process Control
Search Keywords:
3044160
IN STOCK:
662
Can Ship immediately
On Order:
2,300
can ship 12/9/24
Minimum Order:
50
Multiple:
50
Factory Lead-Time
6 Weeks
Quantity
Unit Price
Ext. Price
50
$1.97
$98.500
100
$1.85
$185.000
250
$1.75
$437.500
500
$1.70
$850.000
1,000
$1.67
$1,670.000
2,500
$1.65
$4,125.000
5,000
$1.62
$8,100.000
7,500
+
$1.60
$12,000.000
Product Guides
Product Changes
Accessories

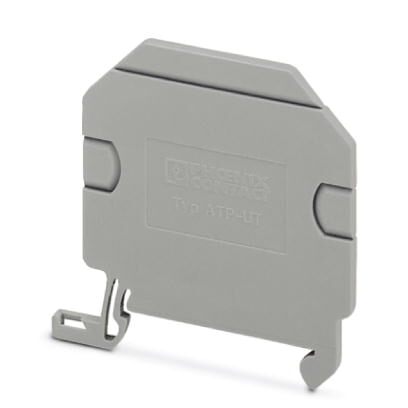

ATP-UT
Partition plate - length: 53.4 mm - width: 2.2 mm - height: 45.7 mm - color: gray

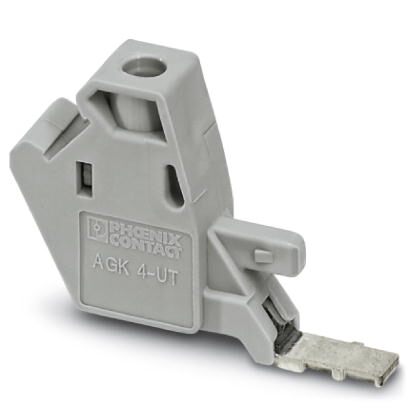

AGK 4-UT 10
Pick-off terminal block - nom. voltage: 1000 V - nominal current: 32 A - connection method ...

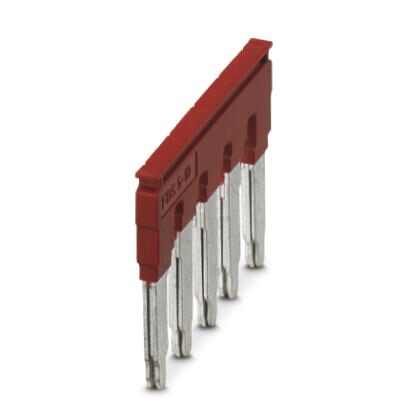

FBS 5-10
Plug-in bridge - pitch: 10.2 mm - number of positions: 5 - color: red
NS 35/15 WH PERF 2000MM
DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...
NS 35/15 CU UNPERF 2000MM
DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...
UCT-TM 10
Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: TOPMARK NEO ...
NS 35/15 CAP
DIN rail end piece - for DIN rail NS 35/15
ZB10,QR:FORTL.ZAHLEN
Zack marker strip, Strip, white, labeled, can be labeled with: CMS-P1-PLOTTER, Printed ver ...

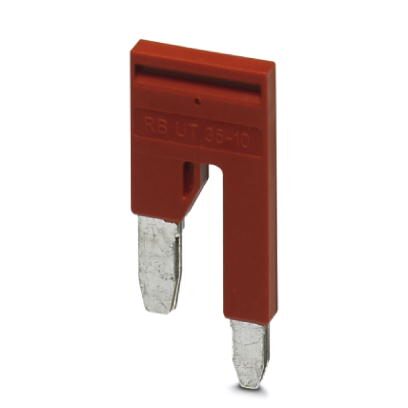

RB UT 35-10
Reducing bridge - pitch: 13.2 mm - number of positions: 2 - color: red
CLIP-PROJECT PROFESSIONAL
Multilingual software for terminal strip configuration. A marking module enables the profe ...
NS 35/15 ZN PERF 2000MM
DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...
NS 35/15 AL UNPERF 2000MM
DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...
E/AL-NS 35
End clamp - for end support of UKH 50 to UKH 240 - is pushed onto DIN rail NS 35 and fixed ...
UC-TM 10
Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: BLUEMARK ID ...

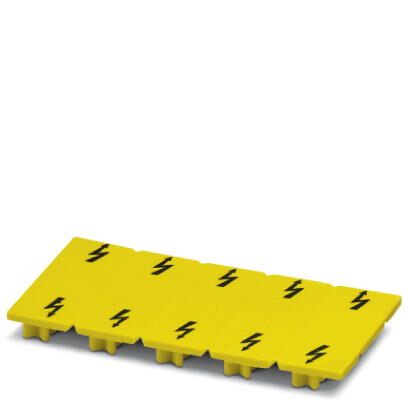

WS UT 10
Warning sign for UT terminal blocks
UC-TM 10 CUS
Marker for terminal blocks - can be ordered: by sheet - white - labeled according to custo ...
ZB 10 CUS
Zack marker strip - can be ordered: Strip - white - labeled according to customer specific ...
FBS 2-10
Plug-in bridge - pitch: 10.2 mm - number of positions: 2 - color: red

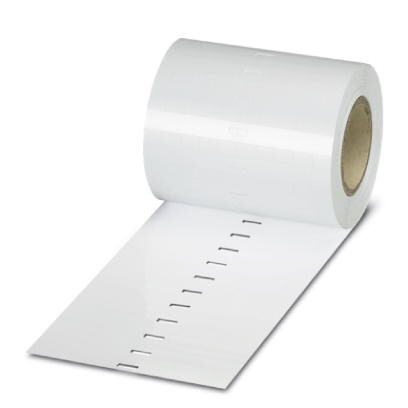

TMT 10 R
Marker for terminal blocks - Roll - white - unlabeled - can be labeled with: THERMOMARK RO ...
NS 35/15 PERF 2000MM
DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...
NS 35/15 UNPERF 2000MM
DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...
NS 35/15 ZN UNPERF 2000MM
DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...
ZB 10:UNBEDRUCKT
Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...
NS 35/15 WH UNPERF 2000MM
DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...
