3044199
Phoenix ContactFeed-through terminal block - nom. voltage: 1000 V - nominal current: 76 A - connection method: Screw connection - number of connections: 2 - cross section: 1.5 mm² - 25 mm² - AWG: 16 - 4 - width: 12.2 mm - height: 54.4 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3044199
Alias/AKA:
UT 16
RoHS:
Yes
HTS:
8536904000
COO:
TR
ECCN:
EAR99
Supplier Standard Pack:
50
Type:
Feed-Through Modular Terminal Blocks
Mounting:
T DIN Rail
Gender:
F
Termination Method:
Screw
Pitch:
N/R
Number of Circuits:
1
Maximum Voltage Rating:
1000 V
Maximum Current Rating:
101 A
Wire Size:
4-16 AWG
Operating Temperature:
N/A
The UT 16 is a 2-position 1-level grey Feed-through Terminal Block with a polyamide insulator, the M5 screw connection and the NS 35/7,5, NS 35/15 mounting. This 3044199 terminal block accepts 16 to 14AWG wire range. The reducing bridges can be used to connect terminal blocks with different connection technologies. Easy and time-saving potential supply and distribution of large currents and cross sections up to 35mm² with reducing bridges. The flexible options for reducing bridging in the CLIPLINE complete system can be found in accessories for the CLIPLINE complete modular terminal block system.
Half-sine shock form
14mm Stripping length
UL94V-0 Flammability rating
Applications
Industrial, Automation & Process Control
Search Keywords:
3044199
IN STOCK:
1,109
Can Ship immediately
Manufacturer Stock:
17,346
can ship
10/28/24
Minimum Order:
50
Multiple:
50
Factory Lead-Time
5 Weeks
can ship
11/18/24
Quantity
Unit Price
Ext. Price
50
$2.34
$117.000
100
$2.30
$230.000
250
$2.16
$540.000
500
$2.11
$1,055.000
1,000
$2.06
$2,060.000
2,500
$2.03
$5,075.000
5,000
$2.00
$10,000.000
7,500
+
$1.97
$14,775.000
Accessories

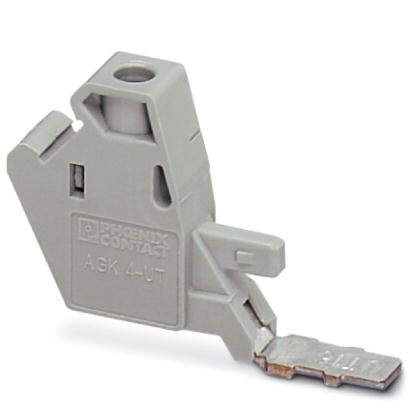

AGK 4-UT 16
Pick-off terminal block - nom. voltage: 1000 V - nominal current: 32 A - connection method ...

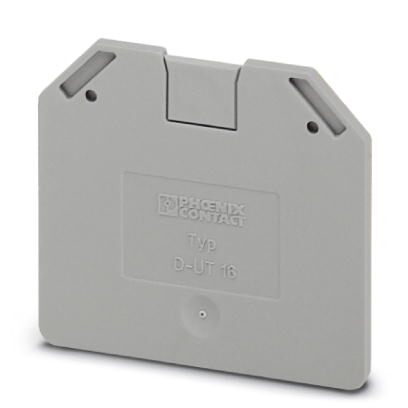

D-UT 16
End cover - length: 52.8 mm - width: 2.2 mm - height: 47.3 mm - color: gray

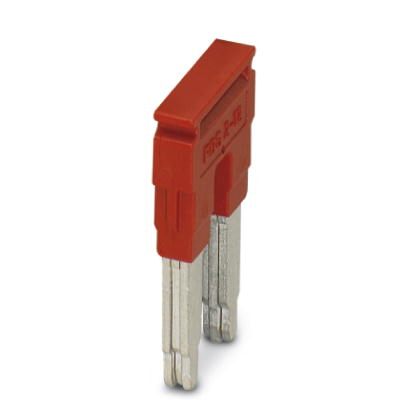

FBS 2-12
Plug-in bridge - pitch: 12 mm - number of positions: 2 - color: red
NS 35/15 CU UNPERF 2000MM
DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...
NS 35/15 CAP
DIN rail end piece - for DIN rail NS 35/15
NS 35/15 WH PERF 2000MM
DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...

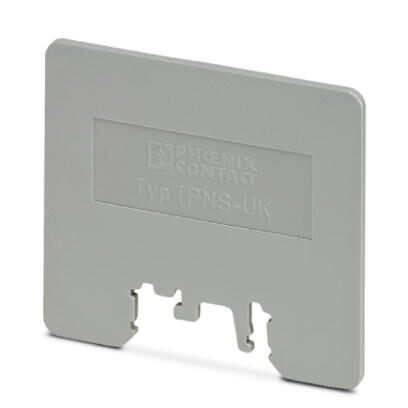

TPNS-UK
Partition plate - length: 80 mm - width: 2 mm - height: 70 mm - color: gray
NS 35/15 PERF 2000MM
DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...
CLIP-PROJECT PROFESSIONAL
Multilingual software for terminal strip configuration. A marking module enables the profe ...
NS 35/15 UNPERF 2000MM
DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...
NS 35/15 ZN PERF 2000MM
DIN rail perforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN 6071 ...
NS 35/15 AL UNPERF 2000MM
DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

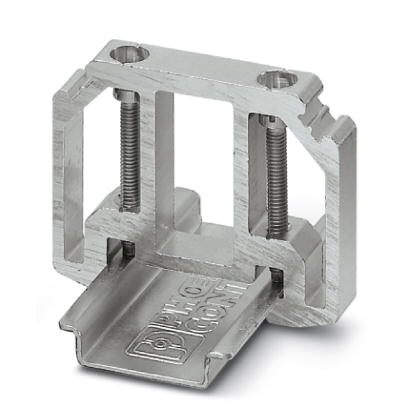

E/AL-NS 35
End clamp - for end support of UKH 50 to UKH 240 - is pushed onto DIN rail NS 35 and fixed ...
UC-TM 12 CUS
Marker for terminal blocks - can be ordered: by sheet - white - labeled according to custo ...

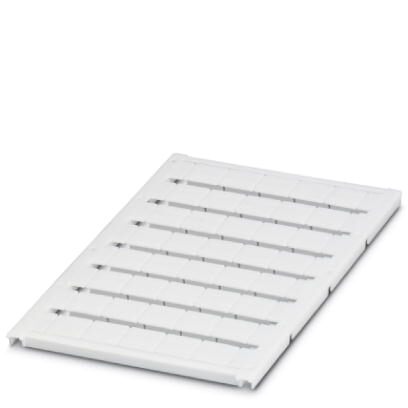

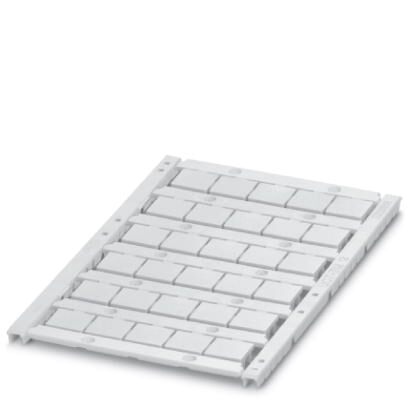

UC-TM 12
Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: BLUEMARK ID ...
UCT-TM 12
Marker for terminal blocks - Sheet - white - unlabeled - can be labeled with: TOPMARK NEO ...

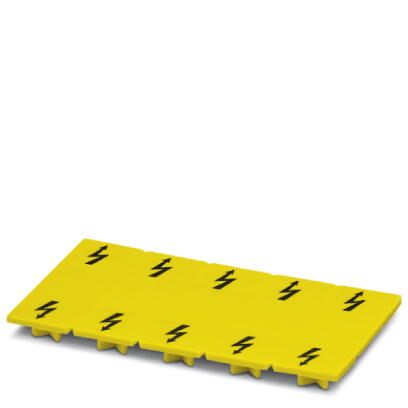

WS UT 16
Warning sign for UT terminal blocks

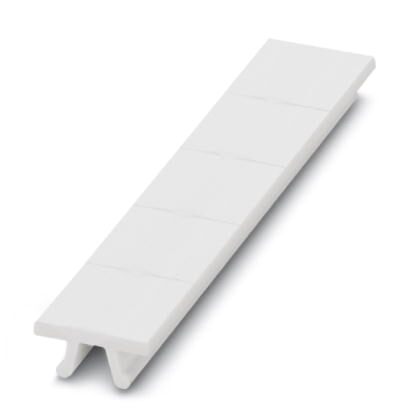

ZB 12:UNPRINTED
Zack marker strip - Strip - white - unlabeled - can be labeled with: PLOTMARK - CMS-P1-PLO ...
ZB 12 CUS
Zack marker strip - can be ordered: Strip - white - labeled according to customer specific ...
NS 35/15 WH UNPERF 2000MM
DIN rail - unperforated - Standard profile - width: 35 mm - height: 15 mm - similar to EN ...

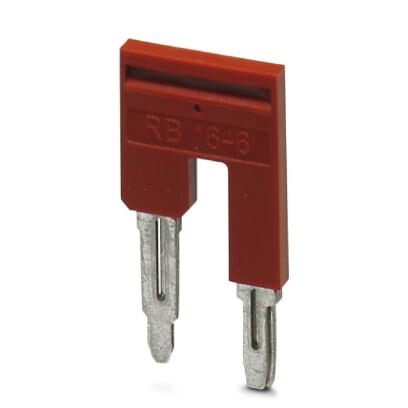

RB 16-6
