3211813

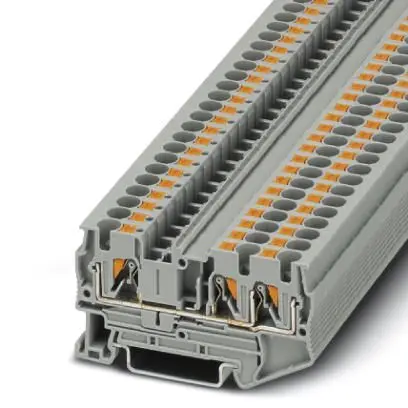

Phoenix ContactFeed-through terminal block - nom. voltage: 1000 V - nominal current: 41 A - connection method: Push-in connection - number of connections: 2 - cross section: 0.5 mm² - 10 mm² - AWG: 20 - 8 - width: 8.2 mm - height: 42.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 .. see full description
- RoHS Compliant
- Set Notification
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3211813
Alias/AKA:
PT 6
RoHS:
Yes
HTS:
8536904000
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:
50
Type:
Feed-Through Terminal Block
Mounting:
T DIN Rail
Gender:
N/A
Termination Method:
N/A
Pitch:
N/A
Number of Circuits:
2
Maximum Voltage Rating:
N/A
Maximum Current Rating:
41 A
Wire Size:
8-20 AWG
Operating Temperature:
N/A
The PHOENIX CONTACT part 3211813 is a high-quality feed-through terminal block designed for various electrical applications. With a nominal voltage of 1000 V and a nominal current of 41 A, this terminal block is ideal for industrial use. It features a convenient push-in connection method and has a total of 2 connections, accommodating wire cross sections ranging from 0.5 mm² to 10 mm² (AWG 20-8). The terminal block has a compact design, with dimensions of 8.2 mm in width and 42.2 mm in height, and comes in a sleek gray color. It is designed for easy mounting on NS 35/7.5 or NS 35/15 DIN rails, making installation a breeze. Trust PHOENIX CONTACT for reliable and efficient electrical connections with this top-notch feed-through terminal block.
Search Keywords:
3211813
IN STOCK:
245
Can Ship immediately
Manufacturer Stock:
25,886
can ship
10/25/24
Minimum Order:
50
Multiple:
50
Factory Lead-Time
11 Weeks
can ship
12/26/24
Quantity
Unit Price
Ext. Price
50
$2.63
$131.500
100
$2.46
$246.000
250
$2.37
$592.500
500
$2.32
$1,160.000
1,000
$2.29
$2,290.000
2,500
$2.25
$5,625.000
5,000
$2.22
$11,100.000
7,500
+
$2.19
$16,425.000
