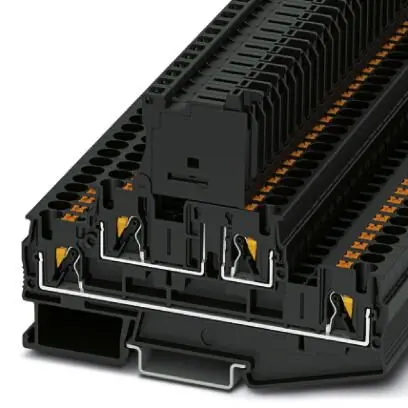

Phoenix ContactFuse modular terminal block - fuse type: Glass / ceramics / ... - connection method: Screw connection - cross section: 0.14 mm²- 6 mm² - AWG: 26 - 10 - nominal current: 28 A - nom. voltage: 500 V - width: 6.2 mm - fuse type: G / 5 x 20 - mounting type: NS 35/7,5 - NS 35/15 - color: black .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
3214325
Alias/AKA:
UT 4-L/HESI (5X20)
RoHS:
Yes
HTS:
8536904000
COO:
PL
ECCN:
EAR99
Supplier Standard Pack
50
Type:
Fuse Modular Terminal Block
Mounting:
N/A
Gender:
N/A
Termination Method:
Screw
Pitch:
N/A
Number of Circuits:
2
Maximum Voltage Rating:
500 V
Maximum Current Rating:
28 A
Wire Size:
10-26 AWG
Operating Temperature:
N/A
The 3214325 is fuse modular terminal block with Glass / ceramics / ... fuse type, connection method: Screw connection, cross section: 0.14 mm²- 6 mm², AWG: 26 - 10, nominal current: 28 A, nom. voltage: 500 V, width: 6.2 mm, fuse type: G / 5 x 20, mounting type: NS 35/7,5, NS 35/15.
Search Keywords:
3214325
IN STOCK:
1,327
Can Ship immediately
Manufacturer Stock:
9,268
can ship
12/9/24
Minimum Order:
5
Factory Lead-Time
5 Weeks
can ship
12/27/24
Quantity
Unit Price
Ext. Price
5
$10.08
$50.400
25
$8.99
$224.750
50
$8.35
$417.500
100
$8.01
$801.000
250
$7.80
$1,950.000
500
$7.59
$3,795.000
1,000
+
$7.48
$7,480.000
