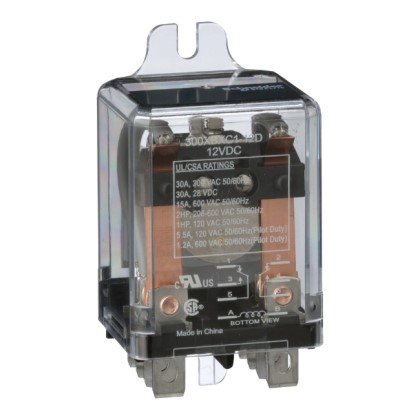

300XBXC1-12D by schneider electric-legacy relays
DATA SHEET

300XBXC1-12D

Schneider Electric-Legacy Relays

Electromechanical Relay 12VDC 75Ohm 30A DPDT (38.89x35.72x73.06)mm Flange Power Relay .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
300XBXC1-12D
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
DPDT
Maximum Current Rating:
30 A
Mounting:
Flange Mount
Termination Style:
Quick Connect
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 85 °C
The Magnecraft / Schneider Electric 300XBXC1-12D is a high-quality electromechanical relay designed for various industrial applications. This relay operates on a 12VDC power supply and has a coil resistance of 75 ohms. Featuring a DPDT (double pole double throw) configuration, it allows for versatile switching capabilities. With a compact form factor measuring at 38.89mm x 35.72mm x 73.06mm, it is easy to install and integrate into different electrical systems. This power relay also comes with a flange for secure and stable mounting. Capable of handling up to 30A of current, it offers reliable and efficient performance. Whether used in automation, HVAC systems, or control panels, the Magnecraft / Schneider Electric 300XBXC1-12D is a durable and dependable choice.
Search Keywords:
300XBXC112D
IN STOCK: 451
Can Ship immediately
Factory Lead-Time
9 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$63.90
$63.900
5
$57.78
$288.900
10
$52.85
$528.500
30
$50.65
$1,519.500
50
$50.14
$2,507.000
100
$46.86
$4,686.000
250 +
$43.86
$10,965.000
Suppliers Standard Package
Tools/3D Models
Request Free CAD Models
