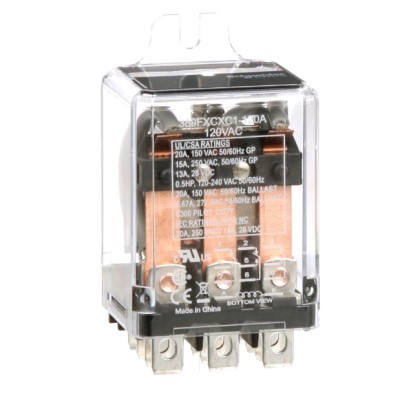

389FXCXC1-120A by schneider electric-legacy relays
DATA SHEET

389FXCXC1-120A

Schneider Electric-Legacy Relays

Electromechanical Relay 110/120VAC 1.2KOhm 13ADC/20AAC 3PDT (73.82x38.89x35.72)mm Flange Power Relay .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
389FXCXC1-120A
RoHS:
Yes
HTS:
8536410050
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
110,120 V
DC Coil Voltage:
N/A
Contact Arrangement:
3PDT
Maximum Current Rating:
25 A
Mounting:
Flange Mount
Termination Style:
Quick Connect
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C
The Magnecraft / Schneider Electric part 389FXCXC1-120A is an Electromechanical Relay designed for versatile applications. This relay operates on a voltage range of 110/120VAC and features a resistance of 1.2KOhm. With a current rating of 13ADC/20AAC, it ensures reliable performance in demanding electrical circuits. The 3PDT configuration of this relay allows for multiple control functions, making it suitable for complex control systems. Measuring at 73.82x38.89x35.72mm, its compact flange design simplifies installation in various electrical systems. The Magnecraft / Schneider Electric 389FXCXC1-120A is a powerful and efficient solution for maximizing power relay functionality.
Search Keywords:
389FXCXC1120A
IN STOCK: 0
On Order:
32   can ship 12/9/24
500   can ship 1/27/25
Factory Lead-Time
28 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$41.04
$41.040
5
$34.18
$170.900
10
$31.21
$312.100
30
$30.74
$922.200
50
$30.28
$1,514.000
100
$29.82
$2,982.000
250 +
$29.38
$7,345.000
Suppliers Standard Package
Older Equivalent
W389ACX-14
