750XBXH-24D by schneider electric-legacy relays
DATA SHEET

750XBXH-24D

Schneider Electric-Legacy Relays

Electromechanical Relay 24VDC 470Ohm 12A DPDT (38.6x34x52.07)mm Socket General Purpose Relay .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
750XBXH-24D
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
12 A
Mounting:
Socket
Termination Style:
8-Pin Circular Plug
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 70 °C
Coil Resistance:
470 Ohm

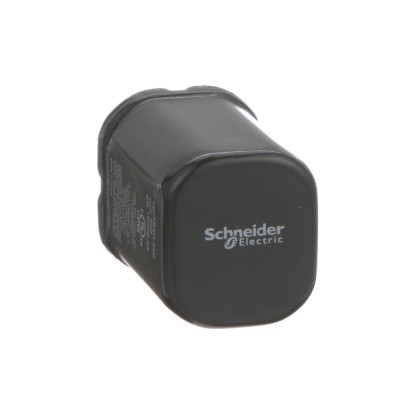

The Magnecraft / Schneider Electric part 750XBXH-24D is a high-quality electromechanical relay designed for general purpose applications. With a voltage rating of 24VDC and a coil resistance of 470 Ohm, this relay provides reliable switching capabilities. It features a DPDT (Double Pole Double Throw) configuration, allowing for versatile control of multiple circuits. The compact dimensions of 38.6x34x52.07mm make it suitable for space-constrained installations. Equipped with a socket, installation and replacement are made easy. This 12A rated relay is perfect for a wide range of industrial, commercial, and residential applications.
Search Keywords:
750XBXH24D
IN STOCK: 0
On Order:
250   can ship 12/16/24
50   can ship 12/23/24
Factory Lead-Time
9 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$153.05
$153.050
3
$150.76
$452.280
5
$148.50
$742.500
10
$141.19
$1,411.900
20 +
$126.53
$2,530.600
Suppliers Standard Package
