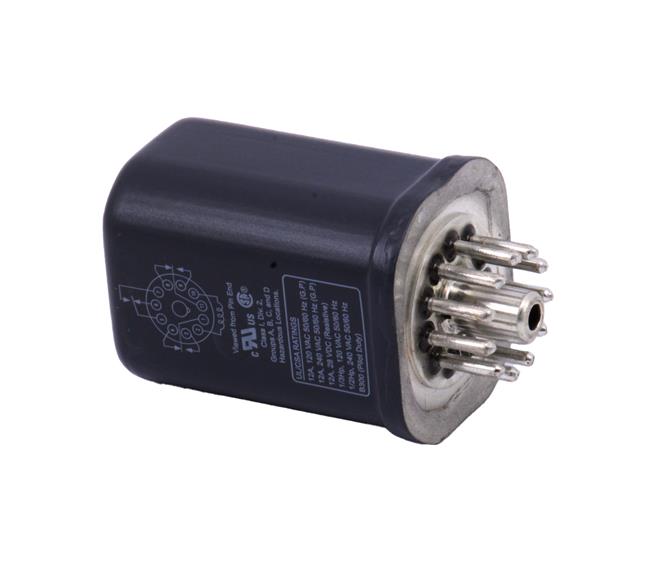

750XCXH-120A by schneider electric-legacy relays
DATA SHEET

750XCXH-120A

Schneider Electric-Legacy Relays

Electromechanical Relay 110/120VAC 9.1KOhm 10A 3PDT (40.8x36.5x52.07)mm Socket General Purpose Relay .. see full description

  • RoHS Compliant
  • Packaging
  • Accessories
  • Set Notification
  • Request Programming Quote
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
750XCXH-120A
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:
10
Package Type:
Relay Construction:
Non-Latching
AC Coil Voltage:
110,120 V
DC Coil Voltage:
N/A
Contact Arrangement:
3PDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
11-Pin Circular Plug
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 55 °C
Coil Resistance:
9.1 KOhm
The Magnecraft / Schneider Electric 750XCXH-120A is a versatile and reliable electromechanical relay designed for general purpose applications. This relay operates at a voltage of 110/120VAC and has a coil resistance of 9.1KOhm. With a contact rating of 10A, it offers a robust switching capability for various electrical loads. The 3PDT configuration ensures efficient control of multiple circuits, enhancing its versatility. With compact dimensions of 40.8x36.5x52.07mm, this relay can be easily integrated into space-constrained systems. It is compatible with a standard socket, simplifying installation and replacement. Trust in this Magnecraft / Schneider Electric relay for dependable performance and longevity in your electrical projects.
Search Keywords:
750XCXH120A
IN STOCK: 91
Ships today, if you order in
Factory Lead-Time
9 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$135.61
$135.610
3
$134.26
$402.780
5
$132.91
$664.550
10
$126.32
$1,263.200
20 +
$116.35
$2,327.000
