DATA SHEET

782XBXCT-24D

Schneider Electric-Legacy Relays

Electromechanical Relay 24VDC 650Ohm 12ADC/15AAC DPDT (27.9x21x39.1)mm THT Power Relay .. see full description

RoHS Compliant
Packaging

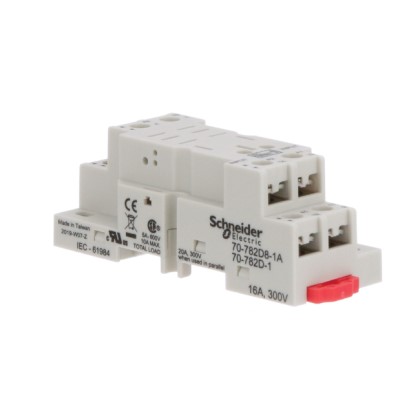

Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
782XBXCT-24D
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
10 A
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 70 °C
Coil Resistance:
650 Ohm
The Magnecraft / Schneider Electric part 782XBXCT-24D is an electromechanical relay designed for reliable and efficient performance. With a 24VDC coil voltage and a resistance of 650Ohm, this relay is capable of handling up to 12ADC and 15AAC current loads. The DPDT configuration ensures versatile switching capabilities, making it suitable for a wide range of applications. Compact in size, measuring 27.9x21x39.1mm, this Through-Hole Technology (THT) power relay is easy to mount and integrate into various circuit designs. Trust this Magnecraft / Schneider Electric relay to provide robust and dependable switching solutions for your electrical system.
Search Keywords:
782XBXCT24D
IN STOCK: 1,386
Can Ship immediately
Minimum Order:
10
Multiple:
10
Factory Lead-Time
9 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
10
$10.57
$105.700
30
$10.45
$313.500
50
$10.35
$517.500
100
$10.24
$1,024.000
250
$10.14
$2,535.000
500
$10.04
$5,020.000
1,000 +
$9.94
$9,940.000
Older Equivalent
78RPCX-3
78RPCX-3
VIEW PRODUCT
Tools/3D Models
