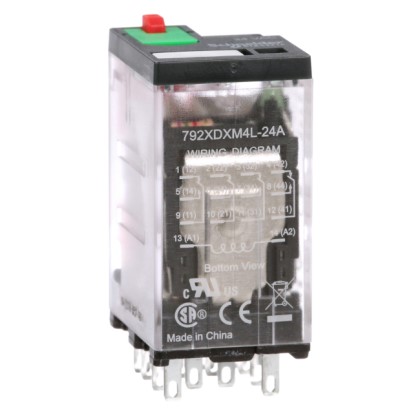

792XDXM4L-24A by schneider electric-legacy relays
DATA SHEET

792XDXM4L-24A

Schneider Electric-Legacy Relays

MINIATURE CONTROL RELAY, 4PDT, 6A, COIL: 24VAC, FULL-FEATURE COVER .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
792XDXM4L-24A
RoHS:
Yes
HTS:
8536410050
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
Relay Construction:
Non-Latching
AC Coil Voltage:
24 V
DC Coil Voltage:
N/A
Contact Arrangement:
4PDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
Solder
Push to Test Button:
Yes
Led Indicator:
Yes
Operating Temperature:
-40 to 55 °C
Coil Resistance:
180 Ohm
The Magnecraft / Schneider Electric part 792XDXM4L-24A is a versatile miniature control relay designed for various industrial applications. With a 4PDT configuration, it allows for multiple poles and throws, providing excellent flexibility in controlling circuits. This relay has a maximum current rating of 6A, making it suitable for handling moderate loads. The coil is designed to operate on a 24VAC power supply. Additionally, this relay comes with a full-feature cover that provides protection and helps maintain the integrity of the electrical connections. Overall, the 792XDXM4L-24A is a reliable and efficient control relay, making it an ideal choice for industrial automation systems.
Search Keywords:
792XDXM4L24A
IN STOCK: 80
Ships today, if you order in
Minimum Order:
10
Multiple:
10
Factory Lead-Time
9 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
10
$20.00
$200.000
30
$18.25
$547.500
50
$16.95
$847.500
100
$15.66
$1,566.000
250
$15.50
$3,875.000
500
$15.34
$7,670.000
1,000 +
$15.19
$15,190.000
Suppliers Standard Package
Older Equivalent
782XDX2M4L-24A
782XDX2M4L-24A
