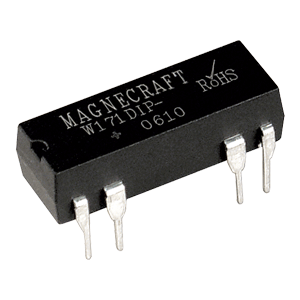

W171DIP-10 by schneider electric-legacy relays
DATA SHEET

W171DIP-10

Schneider Electric-Legacy Relays

Reed Relays 24VDC 2.2KOhm 0.5A SPST-NO (19x7.62x7.49)mm THT Dry .. see full description

  • RoHS Compliant
  • Packaging
  • Accessories
  • Set Notification
  • Request Programming Quote
  • Discontinued
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
W171DIP-10
RoHS:
Yes
HTS:
8536410020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack:
10
Package Type:
Type:
Dry
DC Coil Voltage:
24 V
Contact Arrangement:
SPST-NO
Maximum AC Switching Voltage:
60 V
Maximum DC Switching Voltage:
100 V
Maximum Carry Current:
0.5 A
Maximum Switching Current:
0.5 A
Maximum Switching Power:
10 VA
Package Type:
DIP
Terminal Type:
PC Pin
Mounting:
Through Hole
Life Cycle:
Discontinued
The Magnecraft / Schneider Electric W171DIP-10 is a high-quality Reed Relay designed for reliability and efficiency. This compact relay has a coil voltage of 24VDC and a resistance of 2.2KOhm, making it suitable for a wide range of applications.With a single-pole, single-throw normally open configuration, this relay provides excellent performance in switching circuits with a maximum current rating of 0.5A. Its compact dimensions of 19x7.62x7.49mm and through-hole mounting (THT) design ensure easy installation and integration into various electronic systems.The W171DIP-10 employs dry reed technology, ensuring fast and accurate switch operation with minimal contact resistance. This feature, combined with its durable construction, makes it suitable for demanding applications that require long-lasting performance and high electrical isolation.Whether you need to control small loads in industrial machinery, medical equipment, or other electronic devices, the Magnecraft / Schneider Electric W171DIP-10 Reed Relay offers a reliable and efficient solution.
Search Keywords:
W171DIP10
  This product is discontinued, but still in stock
  Possible Replacement options available.  See Alternatives
IN STOCK: 675
Can Ship immediately
Minimum Order:
10
Multiple:
10
Enter Quantity
Quantity
Unit Price
Ext. Price
10
$9.24
$92.400
30
$6.35
$190.500
50
$6.26
$313.000
100
$6.08
$608.000
250
$5.32
$1,330.000
500
$4.49
$2,245.000
1,000 +
$4.37
$4,370.000
