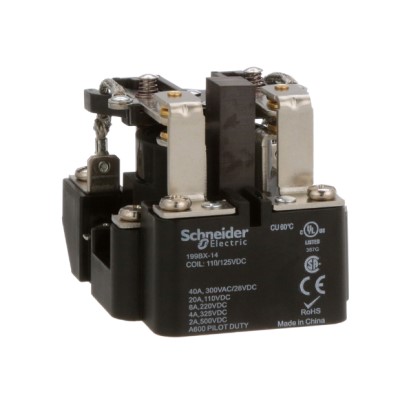

W199BX-14 by schneider electric-legacy relays
DATA SHEET

W199BX-14

Schneider Electric-Legacy Relays

Electromechanical Relay 110VDC 6KOhm 40A DPDT (63.5x79.2x64.26)mm Power Relay .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
W199BX-14
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Package Type:
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
110 V
Contact Arrangement:
DPDT
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C
The Magnecraft W199BX-14 is an electromechanical relay designed for high-performance applications. With a voltage rating of 110VDC, this power relay offers reliable and efficient switching capabilities. Its double pole double throw (DPDT) configuration allows for versatile control of electrical circuits. Measuring at 63.5x79.2x64.26 mm, this compact relay can fit into various installations. Its impressive 40A current rating ensures optimal power handling. Suitable for industrial and commercial use, the Magnecraft W199BX-14 is a dependable choice for demanding relay applications.
Search Keywords:
W199BX14
IN STOCK: 104
Can Ship immediately
On Order:
100   can ship 1/16/25
Factory Lead-Time
16 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$109.15
$109.150
5
$88.98
$444.900
10
$80.23
$802.300
20
$75.62
$1,512.400
50
$74.87
$3,743.500
100
$70.10
$7,010.000
250 +
$69.40
$17,350.000
