CSW2475 by sensata / crydom
DATA SHEET

CSW2475

Sensata / Crydom

Solid State Relay - 3-32 VDC Control - 75 A Max Load - 24-280 VAC Operating - Zero Voltage - Screw Termination - Panel Mount.

RoHS Compliant
EACH Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
CSW2475
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
280 V
Maximum Output Current:
75 A
Output Device:
SCR
Input Type:
DC
Input Voltage:
15 V
Mounting:
Screw
Circuit Arrangement:
1 Form A
Dimension:
58.4 x 45.7 x 22.9 mm
Life Cycle:
Discontinued & Replaced
The CSW2475 solid state relay has SCR output for heavy industrial loads. EMC Compliant for reliable operation in harsh environments. Dimensions of this relay are: 1.75" (44.5mm) x 2.25" (57.3mm) x 0.89" (22.6mm).
Search Keywords:
CSW2475
  This product is discontinued, but still in stock
IN STOCK: 75
Ships today, if you order in
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$117.69
$117.690
5
$115.93
$579.650
10
$114.19
$1,141.900
40
$112.47
$4,498.800
80
$110.79
$8,863.200
120
$109.13
$13,095.600
280 +
$107.49
$30,097.200

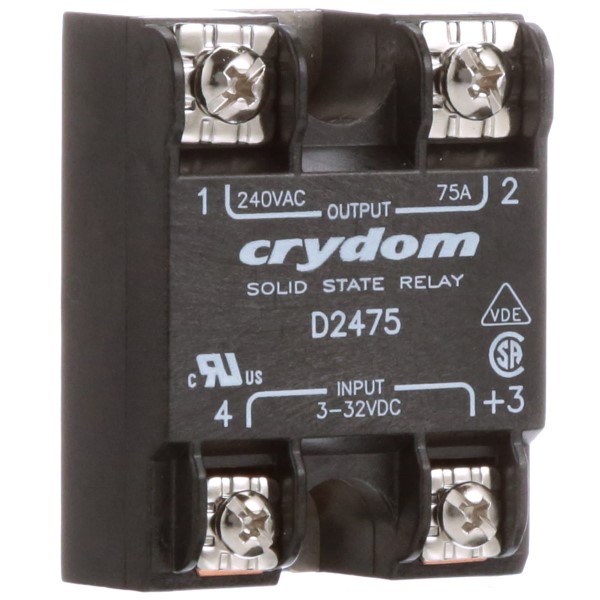

RECOMMENDED REPLACEMENT
D2475
D2475
VIEW PRODUCT
