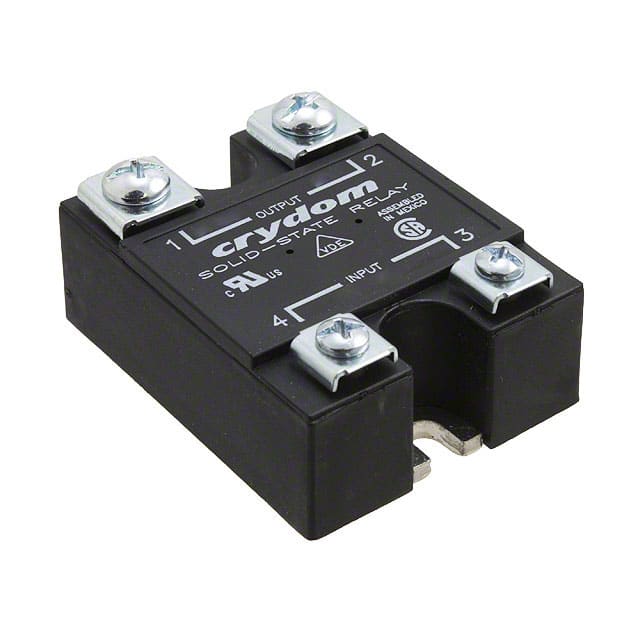

D1D20L by sensata / crydom
DATA SHEET

D1D20L

Sensata / Crydom

Solid State Relay - 3.5-32 VDC Control - 20 A Max Load - 100 VDC Operating - Mosfet Output - High PWM Capability - Screw Termination - Panel Mount.

RoHS Compliant
EACH Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
D1D20L
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
EACH
Output Type:
DC
Maximum Output Voltage:
100 V
Maximum Output Current:
20 A
Output Device:
MOSFET
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
N/A
Dimension:
58.4 x 45.7 x 23 mm
Life Cycle:
Discontinued & Replaced
The D1D20L solid state relay has improved SEMS screw and washer. Redesigned housing with anti-rotation barriers. Dimensions of this relay are: 1.75" (44.5mm) x 2.25" (57.3mm) x 0.89" (22.6mm).
Search Keywords:
D1D20L
  This product is discontinued, but still in stock
IN STOCK: 282
Ships today, if you order in
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$80.86
$80.860
5
$79.65
$398.250
10
$73.62
$736.200
40
$71.17
$2,846.800
80
$67.39
$5,391.200
120
$66.07
$7,928.400
280 +
$65.08
$18,222.400
RECOMMENDED REPLACEMENT
D1D20
D1D20
VIEW PRODUCT
