1050548-1 by te connectivity / amp brand
DATA SHEET

1050548-1

TE Connectivity / AMP Brand

SMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder .. see full description

RoHS Compliant
Carton Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1050548-1
Alias/AKA:
2001-5032-02
RoHS:
Yes
HTS:
8536694010
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Carton
Type:
SMA
Impedance:
50 Ohm
Operating Frequency:
0 to 18 Hz to GHz
Gender:
PL
Mounting:
Cable Mount
Body Orientation:
Straight
Terminate To:
RG405/U Cable
Termination Method:
Solder
Operating Temperature:
-65 to 105 °C
Dimension:
11.1 x 7.9 mm

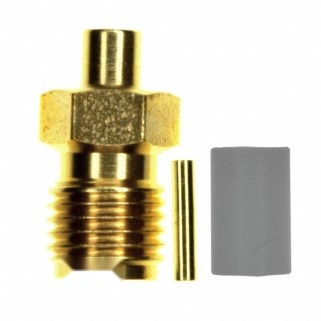

The is a RF / Coaxial Connector, SMA Coaxial, Straight Plug, Solder, 50 ohm, RG405, Beryllium Copper. Connector Style SMA Connector Type Plug, Male Pin Contact Termination Solder Shield Termination Solder Impedance 50 Ohm Mounting Type Free Hanging (In-Line) Cable Group RG-405 (.085" Semi Rigid) Fastening Type Threaded Frequency - Max 18GHz Number of Ports 1 Housing Color Gold Includes 3 pcs - 1 Connector, 1 Contact, 1 Insulator Body Material Stainless Steel Body Finish Gold Center Contact Plating Gold Dielectric Material Polytetrafluoroethylene (PTFE) Operating Temperature -65°C ~ 105°C
Product Highlights:
  • Connector
  • Plug
  • Connector Type = SMA
  • Terminate To Coaxial Cable
  • Coaxial Cable Termination Type = Solder
Search Keywords:
10505481
IN STOCK: 1
Can Ship immediately
You may purchase in-stock quantity up to 1
On Order:
4,722   can ship 12/16/24
Minimum Order:
5
Available in less than min:
1
Factory Lead-Time
3 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$7.139
$7.139
5
$6.490
$32.450
25
$4.230
$105.750
100
$4.170
$417.000
250
$4.110
$1,027.500
500
$4.050
$2,025.000
1,000
$3.970
$3,970.000
2,500
$3.910
$9,775.000
5,000 +
$3.860
$19,300.000
Tools/3D Models
Request Free CAD Models
PDF 3D PDF
