DATA SHEET

1410190-3

TE Connectivity / AMP Brand

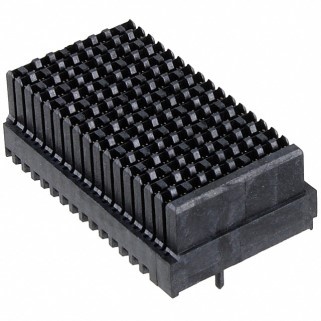

Connector - MULTIGIG RT Series - 16 Contacts - 1.8 mm - Plug - Through Hole - 7 Rows. .. see full description

  • RoHS Non-Compliant
  • Tray Packaging
  • Accessories
  • Set Notification
  • Request Programming Quote
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1410190-3
RoHS:
No
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack:
17
Package Type:
Tray
Type:
Daughter Card
Gender:
PL
Body Orientation:
Right Angle
Mounting:
Through Hole
Pitch:
1.8 mm
Number of Contacts:
112
Termination Method:
Solder
Operating Temperature:
N/A
The 1410190-3 is MULTIGIG RT series tier-2 Connector is the latest product release to meet customer requirements for high-density and high performance two-piece interconnects. In TE and independent lab tests, the MULTIGIG RT tier-2 connector has performed in excess of 6Gbps using standard FR-4 board material and routing techniques and has been demonstrated to 10Gbps. The MULTIGIG RT tier-2 connector system provides the flexibility to configure the daughtercard for differential, single-ended, open pin field or power within a single connector module. All of these options then mate into a common backplane receptacle. The robust connector uses daughtercard plugs with a printed circuit board (PCB) wafer design and backplane receptacles with a completely enclosed dualbeam design. All signal lines use redundant points of contact for high reliability. The MULTIGIG RT tier-2 connector is available for both 20.32 (0.8) and 25.40mm (1 inch) pitch card spacing.
Product Highlights:
  • VITA 41/VITA 46 Configuration = VITA 46
  • 20.3 mm Card Slot Pitch
  • Daughtercard
  • Module Type = Center
  • Right Angle Mount Angle
Search Keywords:
14101903
IN STOCK: 142
Ships today, if you order in
MOQ for out of Stock Qty:
39
Factory Lead-Time
26 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$96.33
$96.330
10
$93.51
$935.100
25
$92.58
$2,314.500
39
$90.78
$3,540.420
77
$89.00
$6,853.000
115
$88.11
$10,132.650
153 +
$86.39
$13,217.670
