DATA SHEET

1571652-4

TE Connectivity / AMP Brand

LF PLUG KIT,SIZE 3,7.2MM .. see full description

RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1571652-4
RoHS:
Yes
HTS:
8536698000
COO:
US
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Cable Insulation Diameter:
7.2 mm
Shell Type:
Full Metal Shell
Contact Mating Area Plating Thickness:
.8 µin
Enclosure:
With
Termination Method to Wire & Cable:
Solder
Insert Flammability Rating:
UL 94V-0
PCB Mount Retention Type:
None
Solder Tail Contact Plating Material:
Tin
UL Flammability Rating:
UL 94V-0
Shield Plating Material:
Tin
Contact Type:
Pin
Color:
Black
Jackscrew Material:
Brass
Shell Plating Material:
Tin
Wire Range:
.5 – .6 mm²
Shell Material:
Steel
Packaging Method:
Package
Number of Positions:
25
Enclosure Material:
PVC
Insert Material:
PBT
Contact Base Material:
Brass
Contact Configuration:
Solder Cup
Mating Connector Lock Type:
Jackscrews
Grade:
Standard
Connector Style:
Plug
Shell Size:
3
Shield Material:
Steel
Preloaded:
Yes
Mating Connector Lock:
With
Contact Size:
20
Pre-Assembled:
No
Shielded:
Yes
Grounding Indents:
With
Mounting Angle:
Straight
Product Type:
Connector
Contact Mating Area Plating Material:
Gold Flash
Wire/Cable Type:
Round Jacketed Cable
Life Cycle:
Discontinued & Replaced
LF PLUG KIT,SIZE 3,7.2MM
Product Highlights:
  • Connector Kit
  • Product Series = HD-20 (Solder Cup)
  • 25 Positions
  • Shielded
  • Plug
Search Keywords:
15716524
  This product is not in stock and cannot be back-ordered
RECOMMENDED REPLACEMENT

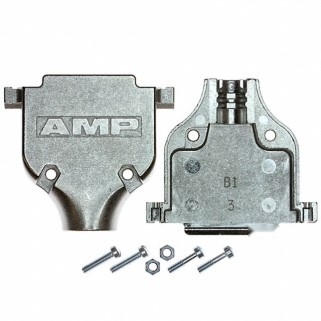

5745173-4
5745173-4
VIEW PRODUCT
