1658659-1 by te connectivity / amp brand
DATA SHEET

1658659-1

TE Connectivity / AMP Brand

Plug for Male Contacts Housing D-Sub Connector 25 Position .. see full description

RoHS Compliant
KIT Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1658659-1
RoHS:
Yes
HTS:
8538908180
COO:
MX
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
KIT
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
PL
Number of Contacts:
25
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Operating Temperature:
N/A

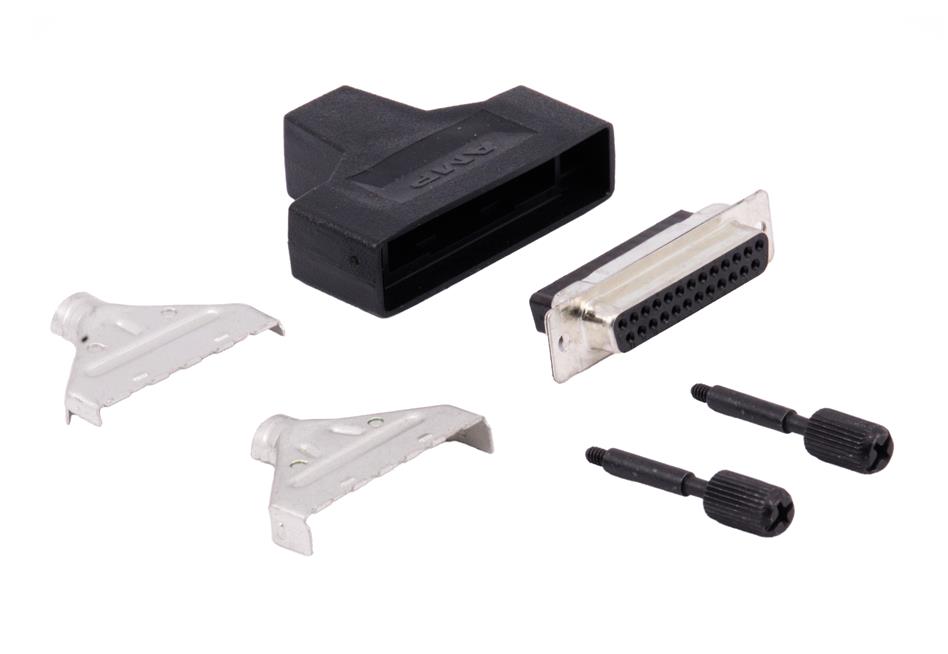

The 1658659-1 is a 25-position black Standard D-sub Shielded Plug with tin-plated steel shell and glass-filled PBT/nylon insert. The Amplimite plug used with the HDP-20 series crimp snap-in contacts. High performance UL94V-0 Flammability rating Connector Style D-Sub Connector Type Plug for Male Contacts Number of Positions 25 Number of Rows 2 Shell Size, Connector Layout 3 (DB, B) Contact Type Signal Mounting Type Free Hanging (In-Line) Flange Feature Cable Side (4-40) Features Backshell, Grounding Indents, Shielded Shell Material, Finish Steel, Tin Plated Shell Finish Thickness 200µin (5.08µm) Applications Industrial
Product Highlights:
  • Connector Kit
  • Product Series = HDP-20 (Crimp Snap)
  • Number of Positions = 25
  • Shielded
  • Plug
Search Keywords:
16586591
IN STOCK: 1,328
Can Ship immediately
On Order:
1,200   can ship 1/22/25
Factory Lead-Time
6 Weeks
Enter Quantity
Quantity
Unit Price
Ext. Price
1
$14.49
$14.490
10
$7.38
$73.800
25
$7.21
$180.250
50
$6.62
$331.000
100
$6.39
$639.000
300
$6.29
$1,887.000
500 +
$6.20
$3,100.000
Suppliers Standard Package
Tools/3D Models
Request Free CAD Models
PDF 3D PDF
