1761681-5 by te connectivity / amp brand
DATA SHEET

1761681-5

TE Connectivity / AMP Brand

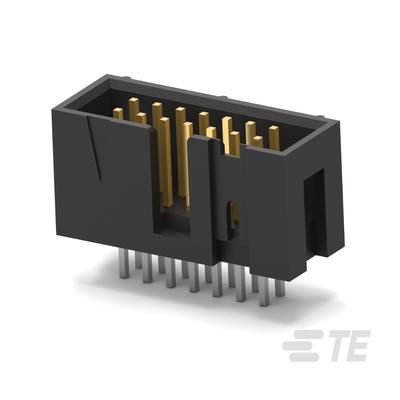

IDC LOW PRO HDR 14P VERT HT BLACK .. see full description

RoHS Compliant
Tray Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1761681-5
RoHS:
Yes
HTS:
8536694051
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Tray
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
14
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
1/Contact A
Termination Method:
Solder
Operating Temperature:
-65 to 105 °C
IDC LOW PRO HDR 14P VERT HT BLACK
Product Highlights:
  • Connector Type = Pin Headers
  • Low Profile
  • Number of Positions = 14
  • 2.54 x 2.54 mm Centerline, Matrix
  • PCB Mount Angle = Vertical
Search Keywords:
17616815
IN STOCK: 2,915
Can Ship immediately
Manufacturer Stock:
2,000   can ship 11/25/24
Minimum Order:
100
Multiple:
100
Factory Lead-Time
10 Weeks can ship 1/23/25
Enter Quantity
Quantity
Unit Price
Ext. Price
100
$1.329
$132.900
300
$1.237
$371.100
500
$1.218
$609.000
1,000
$1.187
$1,187.000
2,500
$1.142
$2,855.000
5,000
$1.026
$5,130.000
7,500
$1.011
$7,582.500
10,000 +
$0.985
$9,850.000
Suppliers Standard Package
Please Note: Item may be subject to tariff fee if shipping within the United States
Older Equivalent
636-1427
636-1427
VIEW PRODUCT
Tools/3D Models
Request Free CAD Models
PDF 3D PDF
